Series
Black Opal：Gaming
Category
Memory
Model Name

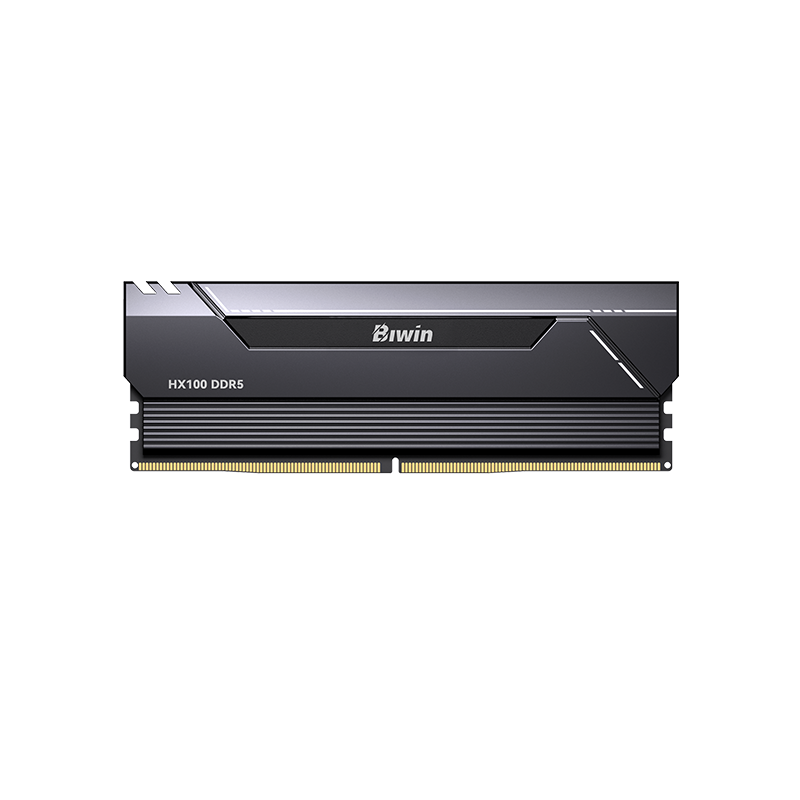

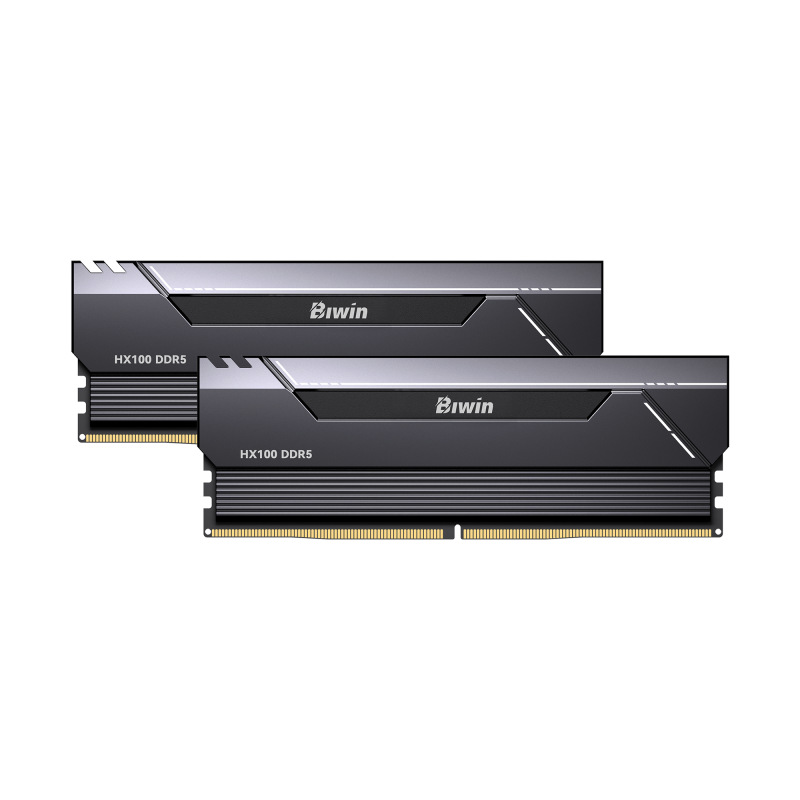

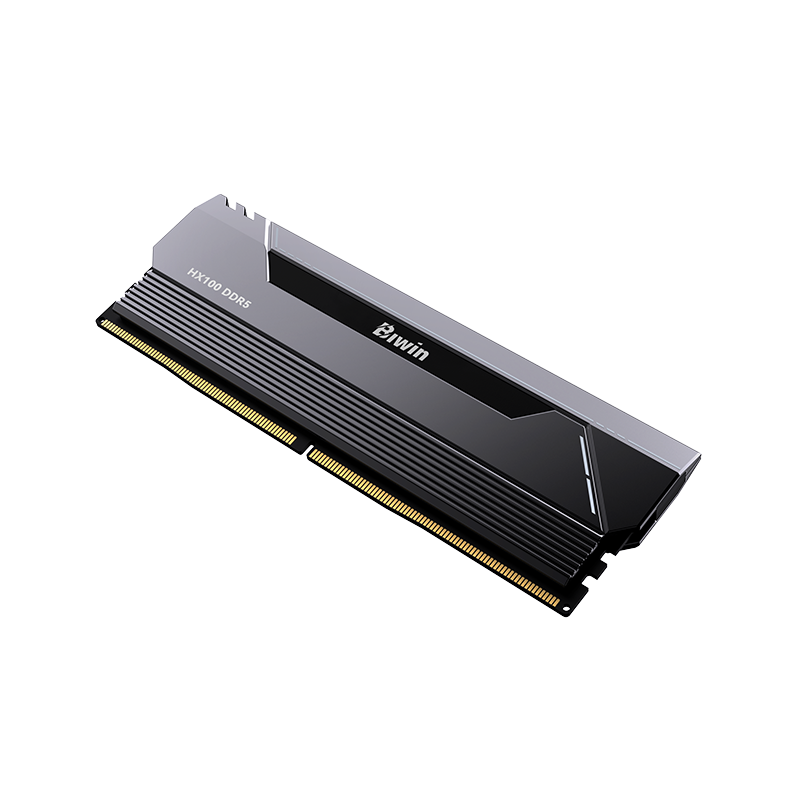

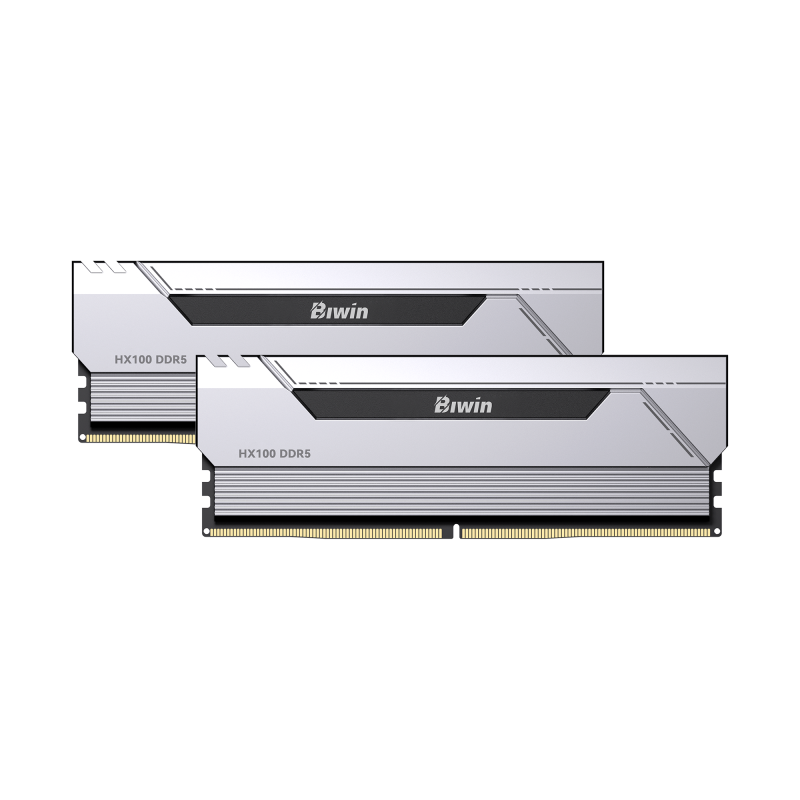

Biwin Black Opal HX100
RAM Type
DDR5 Heatsink UDIMM

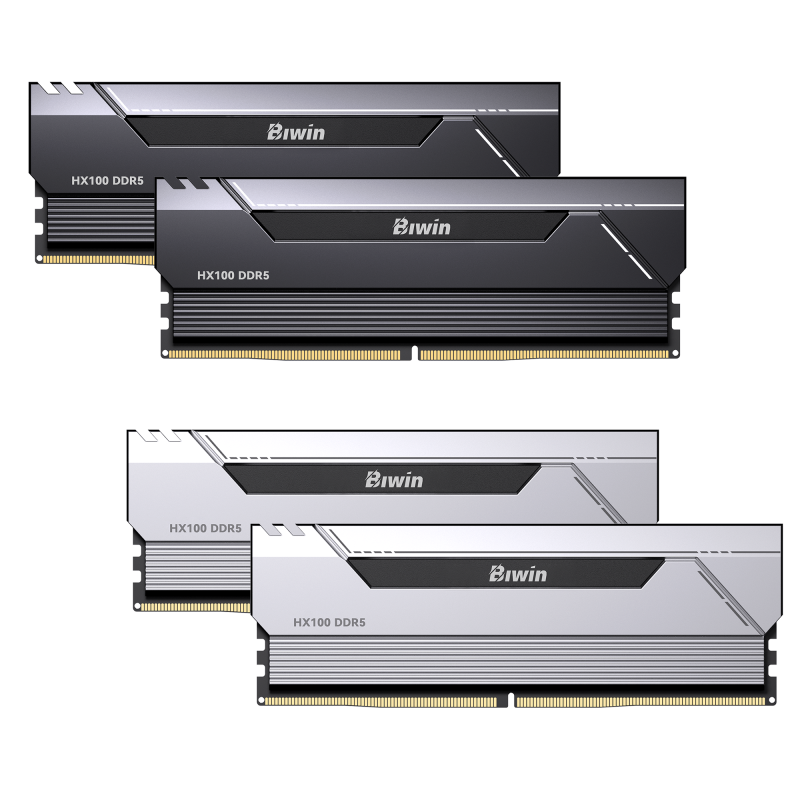

Color
Black, Silver
Capacity
32 GB (16 GB x 2)
48 GB (24 GB x 2)
64 GB (32 GB x 2)
Data Rate
6000 MT/s, 6400 MT/s, 6600 MT/s, 6800 MT/s, 7200 MT/s
Timing
CL28 / CL30 / CL32 / CL34 / CL36
Rank
1R x 8 / 2R x 8
Operating Voltage
1.35 V / 1.40 V
Pin
288 Pin
Dimensions
136.60 x 47.00 x 8.40 mm
Operating Temperature
0℃ to +85℃
Storage Temperature
-40°C to +85°C
Certifications
FCC, CE, KCC, BMSI, RCM, WEEE, RoHS, UKCA, VCCI
Warranty
Limited Lifetime
*7200 MT/s: The data is based on test results from BIWIN’s internal labs and is for reference only. It may vary depending on the device and environment.
*Read Speeds: The data is based on test results at a data rate of 7200 MT/s from BIWIN's internal labs, specifically for the capacity of 32 GB: 16 GB x 2, and is for reference only. It may vary depending on the device. Exercise caution when manually overclocking, and please conduct overclocking tests according to platform standard specifications.
*Temperature decreased by over 5℃:The data is based on test results from BWIN's internal labs conducted according to platform standard specifications and is for reference only. Actual use may vary depending on the device and environment.
*58.8% Increase in Cooling Area: The data is based on comparative tests of similar products in BIWIN's internal labs, showing a significant improvement in cooling performance. Compared to a flat design, the grooved design increases the cooling area by 58.8%.
*Please back up important data when using the product. The free change of a new product is available for any quality issues, excluding the service for data recovery and data loss.
*Limited Lifetime Warranty covers the entire product life cycle including official production, market supply, maintenance, repair, and other services, up to the end of the product life.
*Product images shown above are for reference only. For specifics, please refer to the actual product.
*Product packaging, appearance, and additional software may vary due to shipping dates and available inventory.
*Maintenance and future updates are required throughout the product life cycle. Specifications are subject to change without notice.
