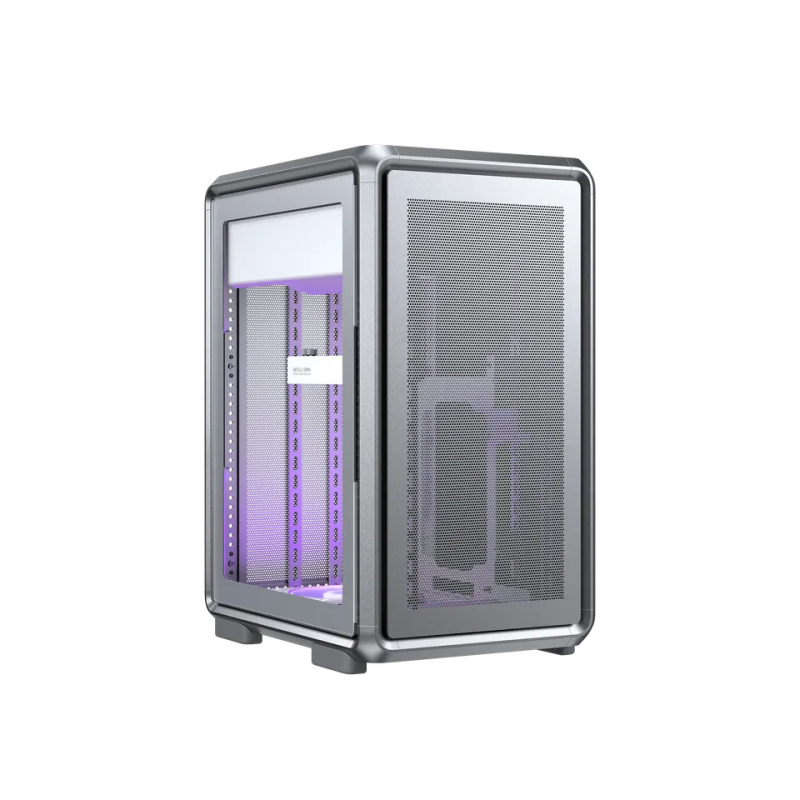

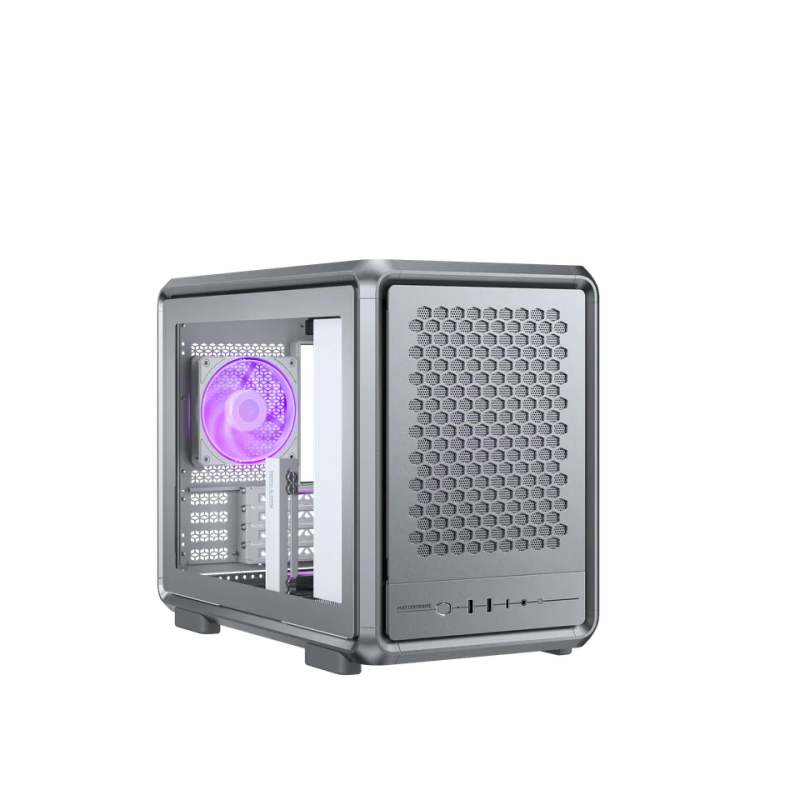

Product NameMasterFrame 400 Mesh

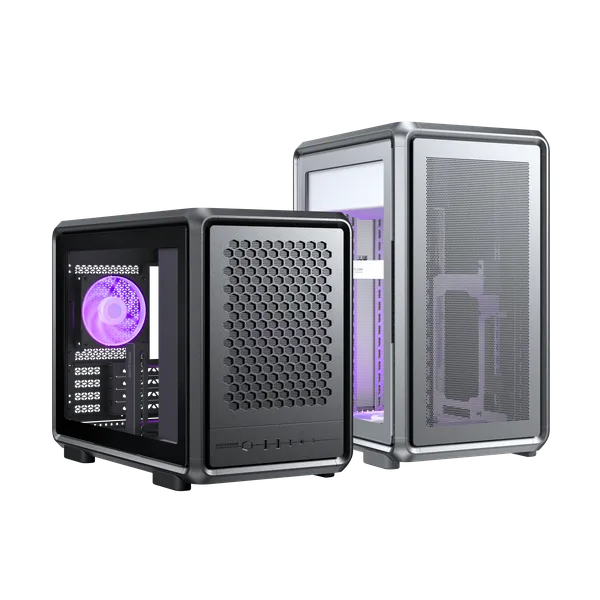

Color(s)Black / Silver
Model NumberBlack: MF400M-KHNN-S00
Model NumberSilver: MF400M-SHNN-S00
MaterialsAL+ SGCC + TG / Mesh
Dimensions (L x W x H)471 x 261 x 373.8 mm (Incl. Protrusions), 471 x 261 x 361 mm (Excl. Protrusions)
Volume44.37 L (w/o protrusions), 46 L (with panel, protrusions and feet)
Motherboard SupportMini-ITX, Micro-ATX
PCI Expansion Slots4
Drive Bays - 5.25" ODDN/A
Drive Bays - 3.5" HDD1 (Only supported without bottom fans. Shares 3.5" and 2.5" mounting positions.)
Drive Bays - 2.5" SSD1 (Only supported without bottom fans. Shares 3.5" and 2.5" mounting positions.)
I/O Panel - USB Ports2 x USB 3.2 Gen 1 Type A / 1 x USB 3.2 Gen 2 x 2 Type C
I/O Panel - Audio In / Out1 x 3.5 Mic / Audio Combo Jack
Pre-installed Fans - Rear1x SickleFlow 120 mm ARGB Black / 1x SickleFlow 120 mm ARGB White
Fan Support - Front2 x 120mm / 1 x 140mm*, 1 x 180mm*, 1 x 200mm* (*Conditional Support)
Fan Support - Top3 x 120mm / 2 x 140mm / 2 x 180mm*, 2 x 200mm* (*Fan thickness ≤ 25.5mm)
Fan Support - Rear1x 120mm
Fan Support - Bottom3x 120mm, 2x 140mm, 2x 180mm, 2x 200mm, and all fans up to 30mm thick.
Radiator Support - FrontN/A
Radiator Support - Top240 / 280 / 360 mm
Radiator Support - Rear120 mm
Radiator Support - BottomN/A
Clearances - CPU Cooler190 mm
Clearances - Power Supply160 mm
Clearances - Graphics Card390 mm
Cable Routing - Behind Motherboard Tray43 mm
AccessoryGraphics Card Holder
Dust FiltersFront, Side
Power Supply SupportATX
Warranty2 years
SeriesMasterFrame Series
SizeMid Tower
Color(s)Black / Silver
Model NumberBlack: MF400M-KHNN-S00
Model NumberSilver: MF400M-SHNN-S00
MaterialsAL+ SGCC + TG / Mesh
Dimensions (L x W x H)471 x 261 x 373.8 mm (Incl. Protrusions), 471 x 261 x 361 mm (Excl. Protrusions)
Volume44.37 L (w/o protrusions), 46 L (with panel, protrusions and feet)
Motherboard SupportMini-ITX, Micro-ATX
PCI Expansion Slots4
Drive Bays - 5.25" ODDN/A
Drive Bays - 3.5" HDD1 (Only supported without bottom fans. Shares 3.5" and 2.5" mounting positions.)
Drive Bays - 2.5" SSD1 (Only supported without bottom fans. Shares 3.5" and 2.5" mounting positions.)
I/O Panel - USB Ports2 x USB 3.2 Gen 1 Type A / 1 x USB 3.2 Gen 2 x 2 Type C
I/O Panel - Audio In / Out1 x 3.5 Mic / Audio Combo Jack
Pre-installed Fans - Rear1x SickleFlow 120 mm ARGB Black / 1x SickleFlow 120 mm ARGB White
Fan Support - Front2 x 120mm / 1 x 140mm*, 1 x 180mm*, 1 x 200mm* (*Conditional Support)
Fan Support - Top3 x 120mm / 2 x 140mm / 2 x 180mm*, 2 x 200mm* (*Fan thickness ≤ 25.5mm)
Fan Support - Rear1x 120mm
Fan Support - Bottom3x 120mm, 2x 140mm, 2x 180mm, 2x 200mm, and all fans up to 30mm thick.
Radiator Support - FrontN/A
Radiator Support - Top240 / 280 / 360 mm
Radiator Support - Rear120 mm
Radiator Support - BottomN/A
Clearances - CPU Cooler190 mm
Clearances - Power Supply160 mm
Clearances - Graphics Card390 mm
Cable Routing - Behind Motherboard Tray43 mm
AccessoryGraphics Card Holder
Dust FiltersFront, Side
Power Supply SupportATX
Warranty2 years
SeriesMasterFrame Series
SizeMid Tower
