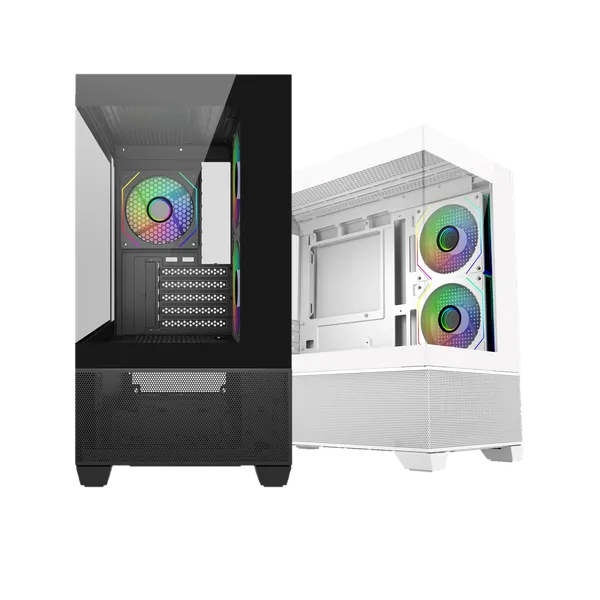

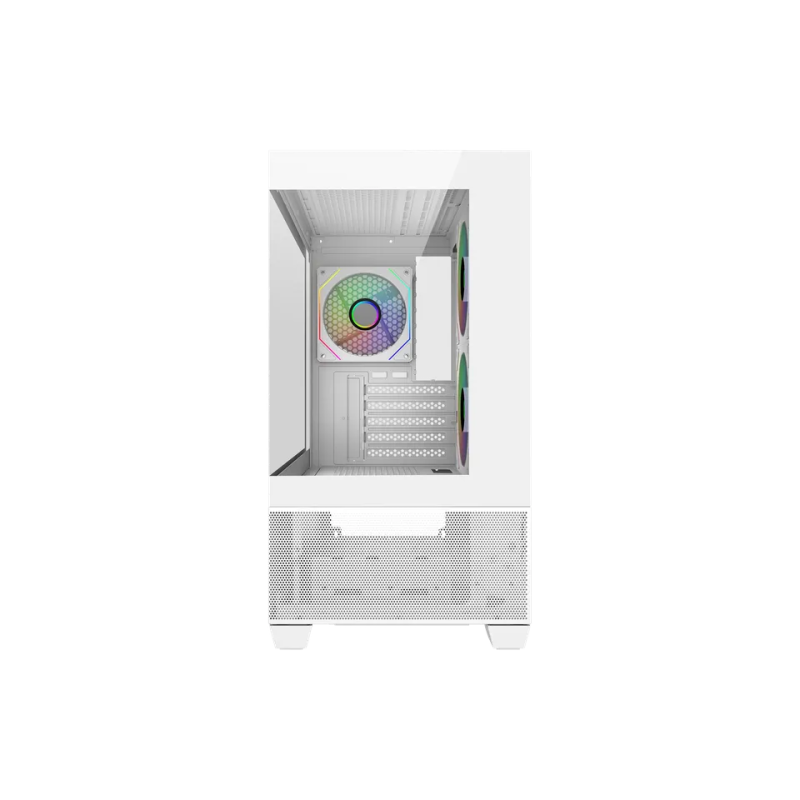

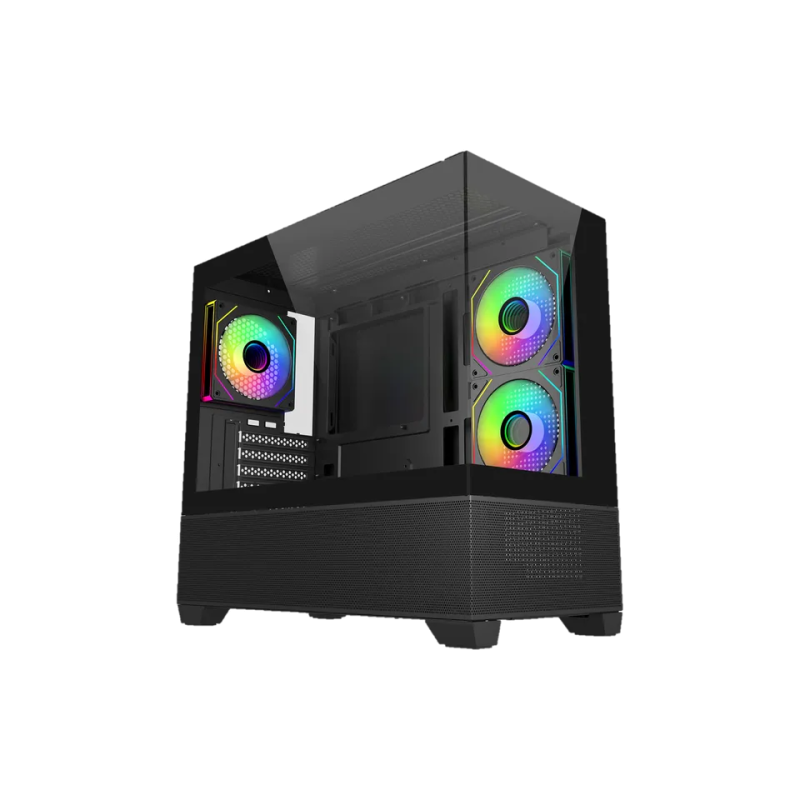

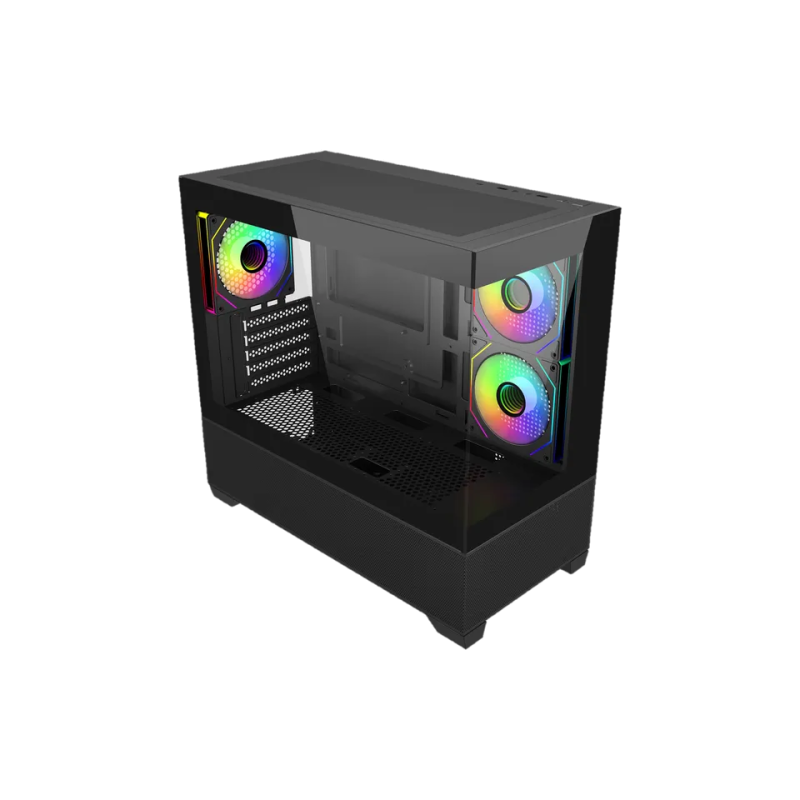

Model NumberBlack: E490-KHNN-S00, White: E490-WHNN-S00
Color(s)Black / White
Materials - Front PanelTempered Glass
Material - Side Panel (Left)Tempered Glass
Material - Side Panel (Right)Steel
Dimensions (L x W x H)434 x 218 x 414 mm (Incl. Protrusions), 430 x 218 x 395 mm (Excl. Protrusions)
Volume39.16 L (Liters Incl. Protrusions)
Motherboard SupportITX / Micro ATX
Expansion Slots5
5.25" Drive Bays0
3.5" Drive Bays1 (Max. 2)
2.5" Drive Bays1
I/O Panel - USB Ports1 x USB Type C 20Gbps, 2 x USB 3.0
I/O Panel - Audio In / Out1x 3.5mm Combo
Pre-installed Fans - Rear1x 120mm ARGB PWM
Pre-installed Fans - Side Mount2x 120mm ARGB PWM reverse fan
Fan Support - Top2x 140mm / 3x 120mm
Fan Support - Rear1x 120mm
Fan Support - Side Mount2x 120mm
Fan Support - Bottom3x 120mm
Radiator Support - Top120 / 240 / 360 (Max height 45mm)
Radiator Support - Bottom120 / 240 / 360mm
Radiator Support - Side Mount120 / 240mm
Clearance - CPU Cooler170mm
Clearance - PSU250mm
Clearance - Graphics Card425mm
Power Supply SupportATX
Warranty2 years
SizeMini Tower
SeriesElite Series
