ModelMPS-D001-AFAP
ATX VersionATX 12V Ver. 3.1
PFCActive PFC
Input Voltage100-240V
Input Current15-7.1A
Input Frequency50-60Hz
Dimensions (L x W x H)180 x 150 x 86 mm
Fan Size120mm
Fan BearingLDB
Fan Speed2050 RPM
Efficiency≥ 92% @ Typical Load
80 PLUS Rating80 PLUS Platinum
ErP 2014 Lot 3Yes
Operating Temperature0-50°C
Power Good Signal100 - 150 ms
Hold Up Time≥ 16ms
MTBF>100,000 Hours
ProtectionsOPP/ OVP/ OTP/ OCP/ SCP/ UVP/ Surge & Inrush Protection
RegulatorycUL, TUV, CE, FCC, BSMI, CCC, EAC, RCM, UKCA/BIS, KC (based on region's request.)

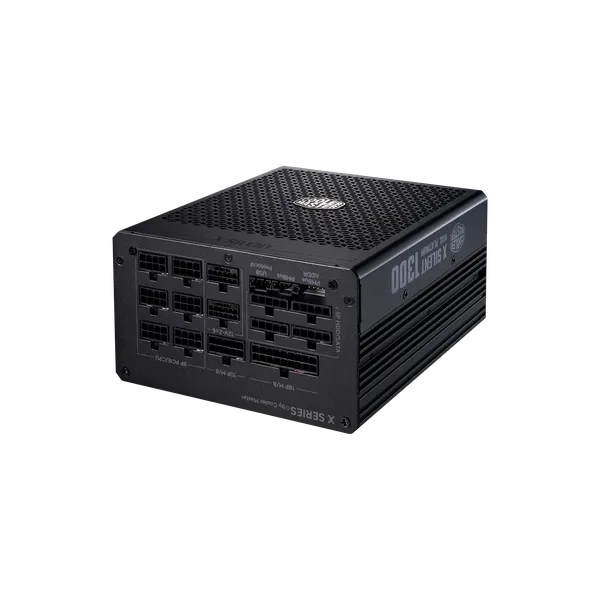

ATX 24 Pin Connectors1
EPS 4+4 Pin Connectors1
EPS 8 Pin Connector1
SATA Connectors12
Peripheral 4 Pin Connectors4
PCI-e 6+2 Pin Connectors4
12V-2x6 Connectors2
USB 10P Connector1
PMBus 5 Pin Connector1
SeriesX Series
80 Plus EfficiencyPlatinum
CategoryAbove 750W
ModularFully Modular
Form FactorATX
Watts1300W
ATX VersionATX 3.1
Input Voltage RangeFull Range
