ModelMPS-K001-AFBP
ATX VersionATX 12V Ver. 3.1
PFCActive PFC
Input Voltage115 - 240V (115 - 240V for 1600W / 200 - 240V for 2000W)
Input Current16A (Max)
Input Frequency50-60Hz
Dimensions (L x W x H)180 x 150 x 86 mm
Fan Size120mm
Fan BearingFDB
Fan Speed2500 RPM
Efficiency≥ 94% @ Typical Load
80 PLUS Rating80 PLUS Platinum of EU Internal
ErP 2014 Lot 3Yes
Operating Temperature0-50°C
Power Good Signal100 - 150 ms
Hold Up Time≥ 16ms
MTBF>100,000 Hours
ProtectionsOPP/ OVP/ OTP/ OCP/ SCP/ UVP/ Surge & Inrush Protection
RegulatorycUL, TUV, CE, FCC, BSMI, CCC, EAC, RCM, UKCA/BIS, KC (based on region's request.)

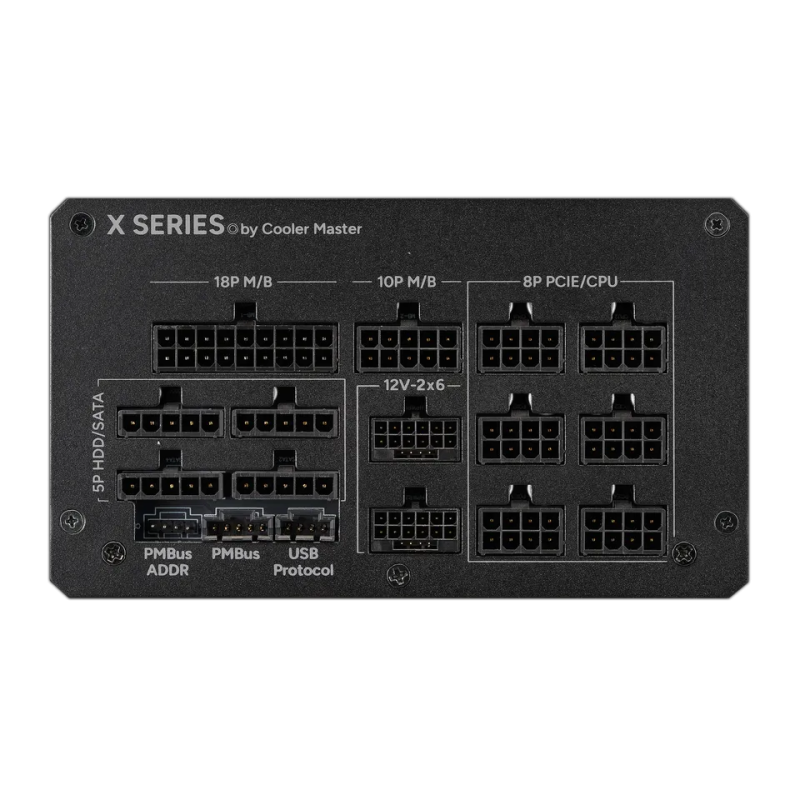

ATX 24 Pin Connectors1
EPS 4+4 Pin Connectors1
EPS 8 Pin Connector1
SATA Connectors12
Peripheral 4 Pin Connectors4
PCI-e 6+2 Pin Connectors4
12V-2x6 Connectors2
USB 10P Connector1
PMBus 5 Pin Connector1
SeriesX Series
80 Plus EfficiencyPlatinum
ModularFully Modular
CategoryAbove 750W
Form FactorATX
Watts2000W
ATX VersionATX 12V Ver. 3.1
PFCActive PFC
Input Voltage115 - 240V (115 - 240V for 1600W / 200 - 240V for 2000W)
Input Current16A (Max)
Input Frequency50-60Hz
Dimensions (L x W x H)180 x 150 x 86 mm
Fan Size120mm
Fan BearingFDB
Fan Speed2500 RPM
Efficiency≥ 94% @ Typical Load
80 PLUS Rating80 PLUS Platinum of EU Internal
ErP 2014 Lot 3Yes
Operating Temperature0-50°C
Power Good Signal100 - 150 ms
Hold Up Time≥ 16ms
MTBF>100,000 Hours
ProtectionsOPP/ OVP/ OTP/ OCP/ SCP/ UVP/ Surge & Inrush Protection
RegulatorycUL, TUV, CE, FCC, BSMI, CCC, EAC, RCM, UKCA/BIS, KC (based on region's request.)
ATX 24 Pin Connectors1
EPS 4+4 Pin Connectors1
EPS 8 Pin Connector1
SATA Connectors12
Peripheral 4 Pin Connectors4
PCI-e 6+2 Pin Connectors4
12V-2x6 Connectors2
USB 10P Connector1
PMBus 5 Pin Connector1
SeriesX Series
80 Plus EfficiencyPlatinum
ModularFully Modular
CategoryAbove 750W
Form FactorATX
Watts2000W
