型號
RT-BE50
Network Standard
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
WiFi 7 (802.11be)
IPv4
IPv6
Product Segment
BE3600 ultimate BE performance : 688+2882 Mbps
WiFi Data Rate
802.11a：最高 54 Mbps
802.11b：最高 11 Mbps
802.11g：最高 54 Mbps
WiFi 7 (802.11be) (2.4GHz): up to 688 Mbps
WiFi 7 (802.11be) (5GHz): up to 2882 Mbps
Antenna
External antenna x 4
Transmit / Receive
2.4GHz 2x2
5GHz 2x2
Processor
Quad-core processor
Memory
128 MB Flash
256 MB RAM
Boosts Speed
OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
4096-QAM high data rate
20/40/80/160 MHz bandwidth
Operating Frequency
2.4GHz / 5GHz
2.4 GHz
5 GHz
Operating Mode
Wireless Router Mode
AiMesh Node Mode
Range Extender Mode
Access Point Mode
Media Bridge Mode
Repeater Mode

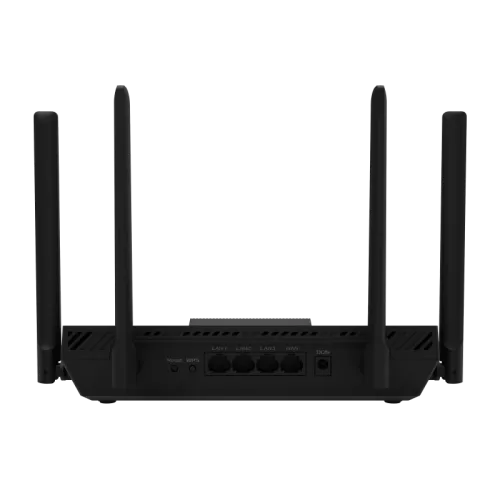

I/O Ports
1x 2.5G for WAN,
3x 1G for LAN,
Buttons
WPS Button, Reset Button
LED Indicator
Power x 1
Power Supply
AC Input : 100V~240V (50~60Hz)
DC Output : 12 V with max. 1.5 A current
Package Content
RT-BE50
RJ-45 cable
Power adapter
Quick Start Guide
Warranty card
Product Weight (g)
450g
Product Dimensions
261 x 156 x 50 mm
AiMesh
有
Parental Control
Time Scheduling
Safe Browsing
有
Guest Network
有
Support Guest Network
• Maximum Guest Network Rule : 2.4GHz x3, 5GHz x3
Guest Network Connection Time Limit
Security
VPN
WPS support, WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise
有
DNS-over-TLS
Security Scan
• Maximum Firewall Keyword Filter : 64
• Maximum Firewall Network Service Filter : 32
• Maximum Firewall URL Filter : 64
VPN
Instant Guard
有
Yes
VPN Client WireGuard
VPN Server WireGuard
VPN Fusion
Traffic Control
有
-- Maximum Bandwidth Limiter Rule : 32
Traditional QoS
-- Maximum Traditional QoS Rule : 32
WAN
Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP
有
• Maximum Port Forwarding Rule : 64
• Maximum Port Triggering Rule : 32
NAT Passthrough : PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, SIP Pass-Through, PPPoE relay
LAN
有
• Maximum Manually Assign IP Address Rule : 64
Wireless
MU-MIMO
有
• Maximum MAC Filters : 64
User Interface
WEB: ASUSWRT
APP: ASUS Router APP
Administration
有
New Device Connect Notification
Login Captcha
Connection Diagnosis
Auto Firmware Update
