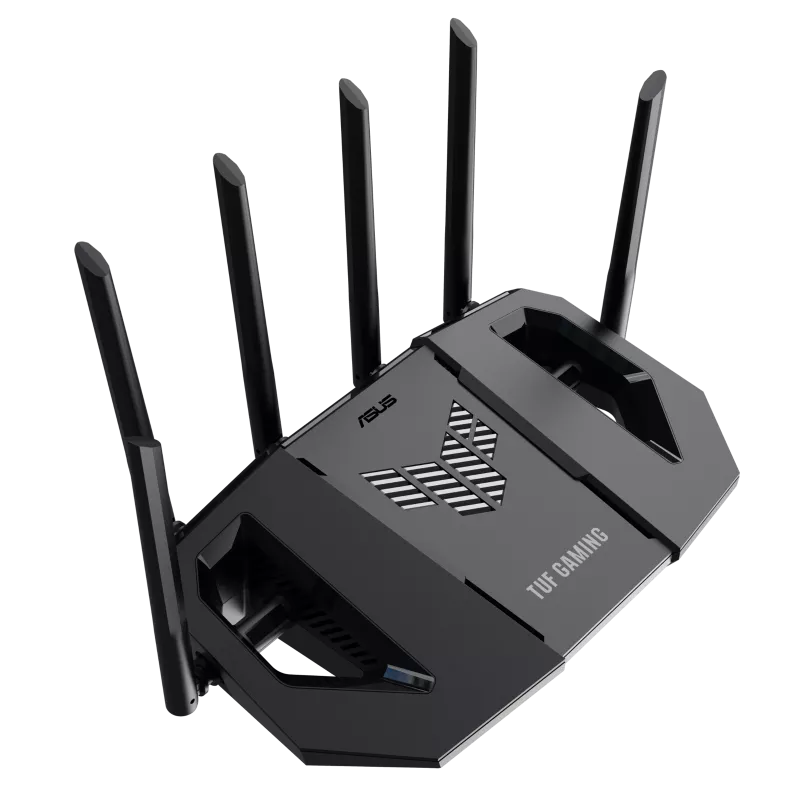

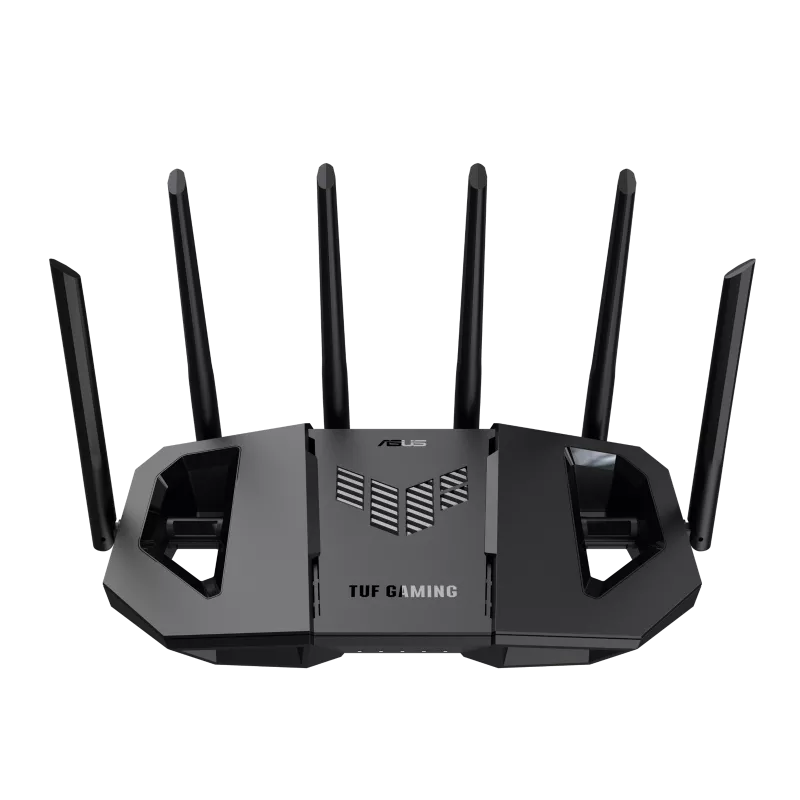

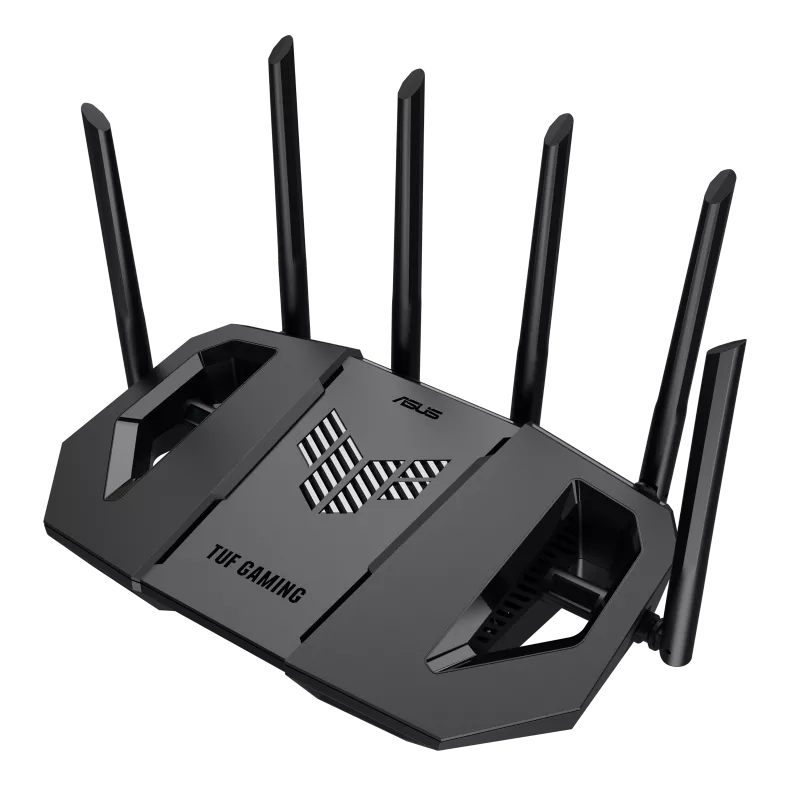

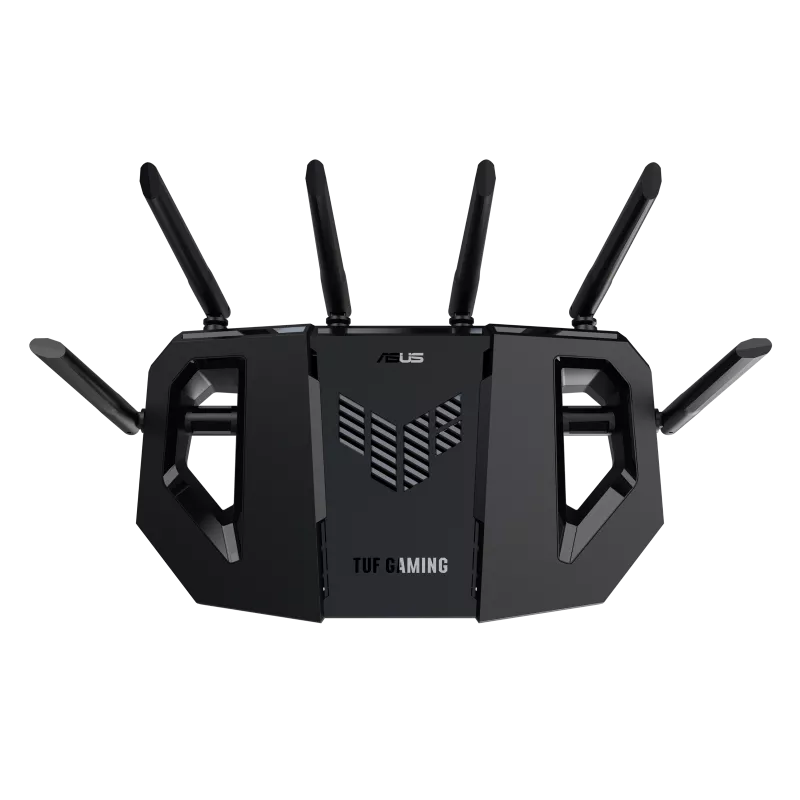

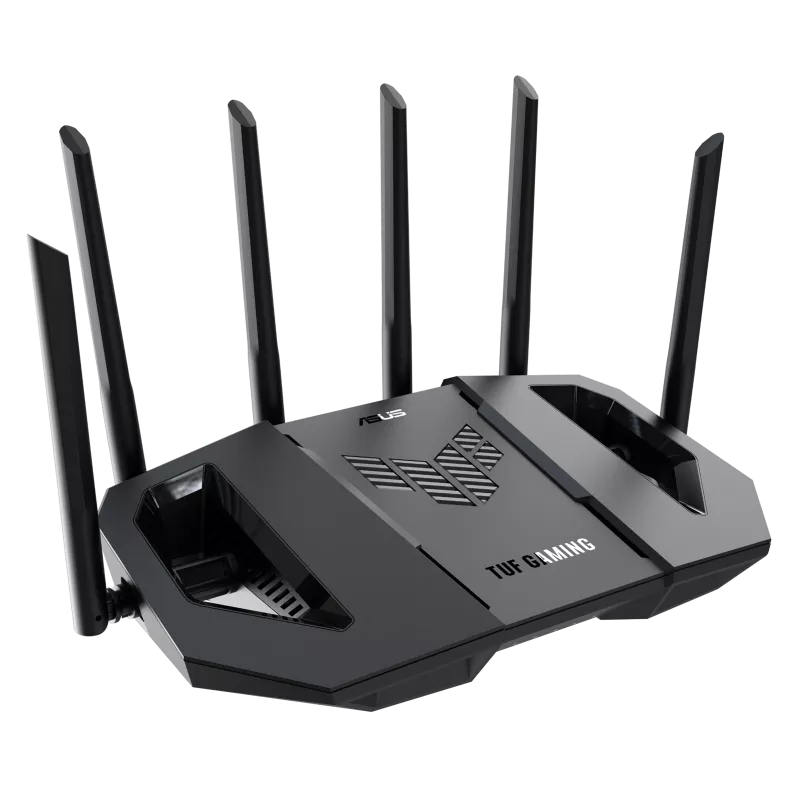

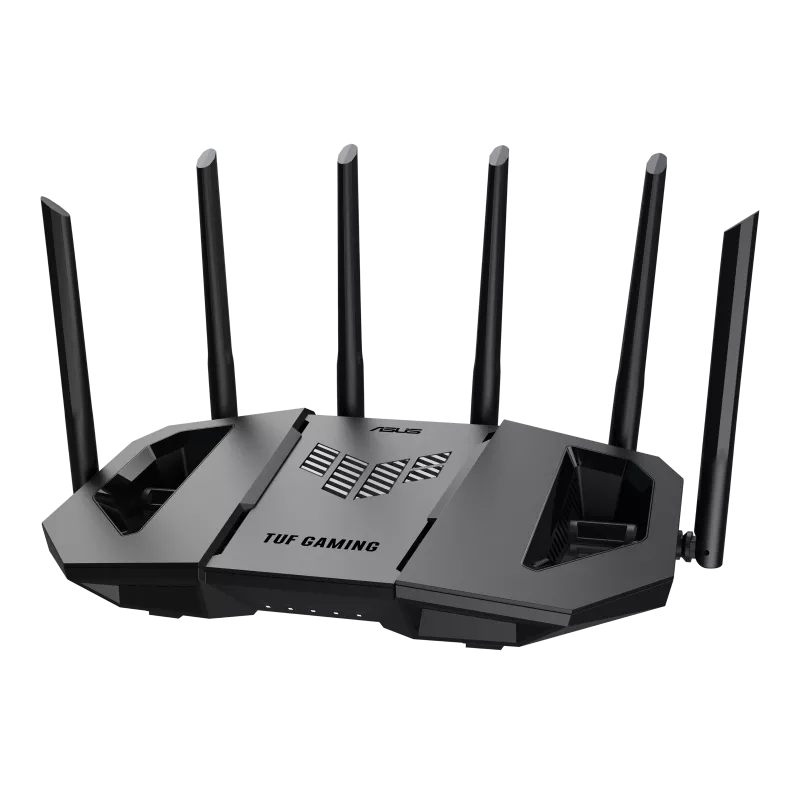

TUF Gaming BE9400 (TUF-BE9400)
Network Standard
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
WiFi 7 (802.11be)
IPv4
IPv6
Product Segment
BE9400 ultimate BE performance : 688+2882+5764 Mbps
WiFi Data Rate
WiFi 7 (802.11be) (2.4GHz): up to 688 Mbps
WiFi 7 (802.11be) (5GHz): up to 2882 Mbps
WiFi 7 (802.11be) (6GHz): up to 5764 Mbps
Antenna
External fixed antenna x 6
Transmit / Receive
2.4GHz 2x2
5GHz 2x2
6GHz 2x2
Processor
1.5GHz Quad-core Processor
Memory
256 MB Flash and 1 GB RAM
Boosts Speed
OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
4096-QAM high data rate
20/40/80/160/320 MHz bandwidth
Operating Frequency
2.4 GHz
5 GHz
6 GHz
Operating Mode
Wireless Router Mode
AiMesh Node Mode
Access Point Mode
Media Bridge Mode
Repeater Mode

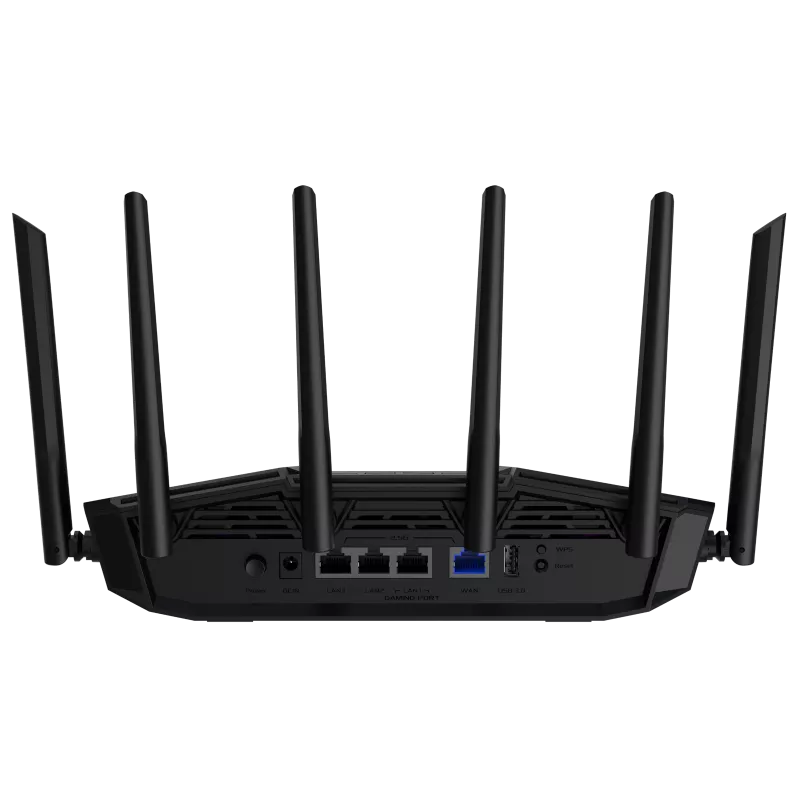

I/O Ports
1 x 2.5Gbps for WAN
3 x 2.5Gbps for LAN
1 x USB 3.2 Gen1
Buttons
WPS Button, Reset Button, Power Button
LED Indicator
WAN(Internet) x1
6GHz x 1
5GHz x 1
2.4GHz x1
Power x1
Power Supply
AC Input : 110V~240V(50~60Hz)
DC Output : 12 V with max. 2.5 A current
Package Content
TUF-BE9400 Tri Band Gaming Router
RJ-45 cable
Power adapter
Quick Start Guide
Warranty card
Product Weight (g)
764 g
Product Dimensions
320 x 179 x 191 mm
AiMesh
有
Game
有
Mobile Game Mode
Gear Accelerator
OpenNAT (Game Profile)
Gaming Port
Parental Control
Web & Apps Filters
Time Scheduling
Safe Browsing
有
• Maximum Parental Control Profile : 64
Guest Network
有
Support Guest Network
• Maximum Guest Network Rule : 2.4 GHz + 5 GHz: 3
Guest Network Connection Time Limit
Guest Network Encryption : Open system, WPA/WPA2/WPA3 Personal
Security
AiProtection
VPN
WPA/WPA2/WPA3 Personal
WPA/WPA2/WPA3 Enterprise
Open System & OWE
有
DNS-over-TLS
Security Scan
• Maximum Firewall Keyword Filter : 64
• Maximum Firewall Network Service Filter : 32
• Maximum Firewall URL Filter : 64
AiProtection
AiProtection
有
VPN
Instant Guard
有
Yes
VPN Client WireGuard
VPN Server WireGuard
VPN Fusion
Support Surfshark
Support Nord VPN
Traffic Control
Adaptive QoS
有
-- Maximum Bandwidth Limiter Rule : 32
Traditional QoS
• Traffic Analysis Period : Daily, Weekly, Monthly
WAN
Internet Connection Type :
• PPPoE
• PPTP
• L2TP
• Automatic IP
• Static IP
• IPSec
有
4G / 5G Auto Mobile Tethering
• Maximum Port Forwarding Rule : 64
• Maximum Port Triggering Rule : 32
• PPTP Pass-Through
• L2TP Pass-Through
• IPSec Pass-Through
• RTSP Pass-Through
• H.323 Pass-Through
• SIP Pass-Through
• PPPoE Relay
LAN
有
• Maximum Manually Assign IP Address Rule : 64
Wireless
MU-MIMO
有
• Maximum MAC Filters : 64
USB application
4G / 5G Auto Mobile Tethering
• HFS+
• NTFS
• vFAT
• ext2
• ext3
• ext4
• FAT32
有
User Interface
WEB: ASUSWRT
APP: ASUS Router APP
Administration
有
New Device Connect Notification
Login Captcha
Connection Diagnosis
Auto Firmware Update
