| ZHITAI TiPro9000 SSD Specification Sheet* | |||
| Form factor | M.2 2280 | ||
| 3D NAND Flash | YMTC's next-generation TLC 3D NAND Flash | ||
| Interface | PCIeTM Gen5.0×4 | ||
| Capacity | 1024GB | 2048GB | 4096GB |
|
Sequential up to (MB/s) |
14,000 | 14,000 | 14,000 |
|
Sequential up to (MB/s) |
12,500 | 12,500 | 12,500 |
|
Random Read up to (IOPS) |
1750K | 2000K | 2000K |
|
Random Write up to (IOPS) |
1800K | 1800K | 1800K |
| MTBF | 1.5 million hours | ||
| Endurance | 600TBW | 1200TBW | 2400TBW |
| Warranty | 5 Years Limited Warranty | ||
|
Management Software |
ZHITAI UNIMASTER | ||
| Encryption | Supports TCG Pyrite protocol | ||
| Package Contents |

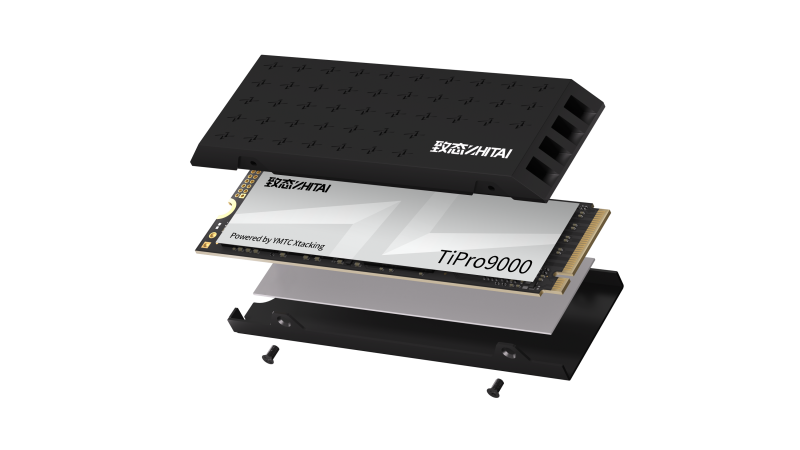

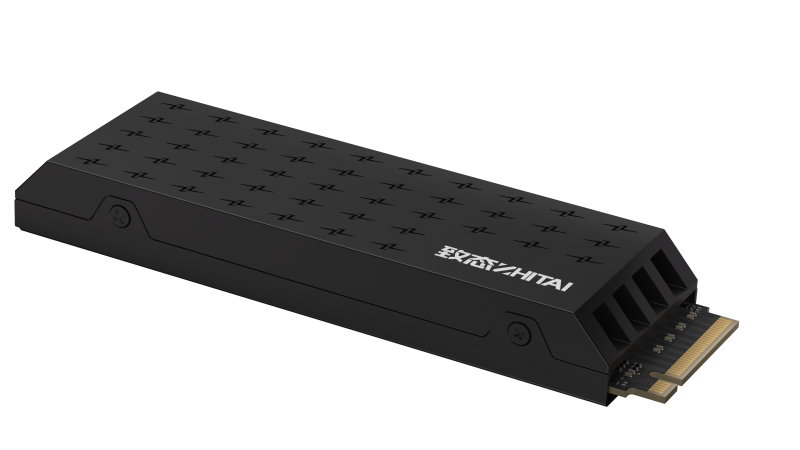

SSD x1 Heatsink x 1 Toolkit x 1 Instruction manual and installation guide x 1 |
||
Note:
①There is a difference between the actual available capacity and the capacity displayed by a computer due to different measurement standards. YMTC using the decimal system: 1GB = 1,000×1,000×1,000 Bytes. Computer operating systems typically use the binary system: 1GB = 1,024×1,024×1,024 Bytes. Therefore, the conversion formula for actual available capacity is: Available Capacity = Labeled Capacity × 93% (1,000³ ÷ 1,024³ = 0.93). The actual available capacity of an SSD may also vary due to formatting, partitioning, and differences between systems.
②Sequential and random performance measurements are based on CrystalDiskMark 8.0.4 on a Windows 11 Pro 64-bit system. The Test System: Motherboard: Motherboard: ROG STRIX Z790-E GAMING WIFI, CPU: Intel i7-13700K, Memory: DDR5 16GB×2.
Performance may vary based on system hardware & configuration. (*Sequential read/write parameters at CDM 1MB Q8T1, Random read/write at CDM 4KB Q32T16).
③5 years or maximum TBW, whichever comes first. For more information about the warranty, please visit the YMTC official website at https://www.ymtc.com/cn/
