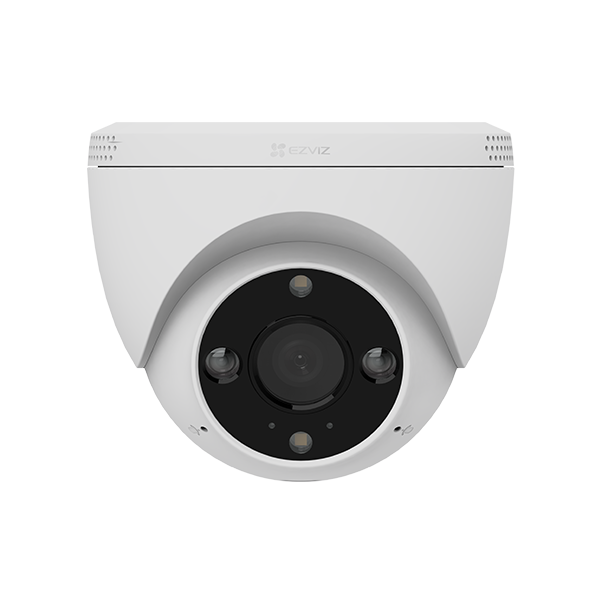

H4
A simple yet solid security solution
Specifications
A simple yet solid security solution
Specifications
Specifications | |
---|---|
Model | CS-H4-R201-1H3WKFL |
Camera | |
Image sensor | 1/2.7” Progressive Scan CMOS |
Shutter Speed | Self-adaptive shutter |
Lens | 2.8 mm, viewing angle: 106° (Horizontal), 122° (Diagonal) 4 mm, viewing angle: 86° (Horizontal), 102° (Diagonal) 6 mm, viewing angle: 52° (Horizontal), 62° (Diagonal) |
DNR | 3D DNR |
Lens Mount | M12 |
Day & Night | IR-cut filter with auto-switching |
WDR | WDR |
BLC | Supports |
Night Vision | Up to 98 ft / 30 m |
Video & Audio | |
Max. Resolution | 2304 × 1296 |
Frame Rate | Max: 25fps; Self-Adaptive during network transmission |
Audio Bit Rate | Self-Adaptive |
Max. Bitrate | 3Mbps |
Video Compression | H.265 / H.264 |
Video Bit Rate | Ultra-HD; HD; Standard. Adaptive bit rate. |
Network | |
Wi-Fi Standard | IEEE802.11b, 802.11g, 802.11n |
Frequency Range | 2.4 GHz ~ 2.4835 GHz |
Channel Bandwidth | Support 20MHz |
Security | 64/128-bit WEP, WPA/WPA2, |
Transmission Rate | 11b: 11Mbps, 11g: 54Mbps, 11n: 150Mbps |
Wi-Fi Pairing | AP pairing |
Protocol | EZVIZ Cloud Proprietary Protocol |
Interface Protocol | EZVIZ Cloud Proprietary Protocol |
Wired Network | RJ45 × 1(10M/100M Adaptive Ethernet Port) |
Functions | |
Smart Alarm | Motion Detection, AI-Powered Human Shape Detection / Vehicle Shape Detection |
Customized Alert Area | Supports |
Two-way Talk | Supports |
General Function | Anti-Flicker, Dual-Stream, Heart Beat, Mirror Image, Password Protection, Watermark |
Storage | |
Local Storage | Supports microSD card storage (up to 512 GB) |
Cloud Storage | Supports EZVIZ CloudPlay storage |
General | |
IP Grade | IP67 |
Operating Conditions | -30℃ ~ 50℃, humidity 95% or less (non-condensing) |
Power Supply | DC 12V / 1A |
Power Consumption | MAX. 8W |
Dimensions | 106 × 106 × 90 mm (4.17 × 4.17 × 3.54 inch) |
Weight | 229 g (8.08 oz) |
In the box | |
In the box | - H4 2K Camera |
- Power Adapter | |
- Drill Template | |
- Screw Kit | |
- Regulatory Information | |
- Quick Start Guide | |
Certifications | |
Certifications | CE / UKCA / RoHS / REACH / WEEE |
