SPECIFICATIONS

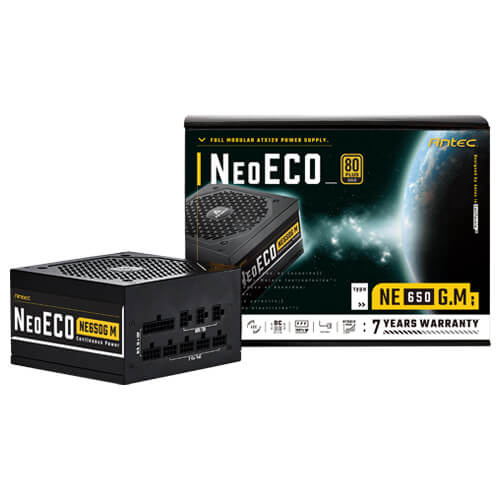

| Product Name | NE650G M |
| Model Name | X7000A078-20 |
| Type | ATX 12V 2.4 |
| Modular | Fully |
| Dimension | 150(L) x 140(W) x 86(H) |
| Warranty | 7 years |
| Input Voltage | 100-240 VAC |
| Input Current | 10A MAX |
| Input Frequency Range | 50Hz-60Hz |
| PFC | Active PFC |
| Power Good Signal | 100-500ms |
| Efficiency | Up To 92% |
| Protection | OCP / OVP / UVP / SCP / OPP / OTP / SIP / NLO |
| Output Capacity | 650W |
| Operation Temperature | 0 ~ 40°C |
| Regulatory | cTUVus / TUV / CB / RCM / CE / FCC / BIS / BSMI / UKCA / ICES |
| Fan | 120mm Silence Fan |
| Certifications | 80 Plus Gold |
| Connector | 1 x MB 24(20+4) Pin |
| 2 x 8(4+4) Pin EPS 12V | |
| 4 x 8(6+2) Pin PCI-E | |
| 8 x SATA | |
| 3 x Molex | |
| 1 x FDD | |
| Net Weight | 1.30 kgs |
| Gross Weight | 2.50 kgs |
| UPC# | 0-761345-11751- NE650G M 0-761345-11752-4 NE650G M AU 0-761345-11753-1 NE650G M EC 0-761345-11754-8 NE650G M GB 0-761345-11755-5 NE650G M JP |
