Product Specification
| Form Factor | 3.5-inch | |
|---|---|---|
| Interface | SATA 6 Gbit/s | |
| Format | 512e | |
| Buffer Size | 64 MiB or 32 MiB | |
| Max Data Transfer Speed | 3 TB, 2 TB | 1815 Mbit/s |
| 1 TB, 500 GB | 1822 Mbit/s | |
| Weight ( Max ) | 3 TB, 2 TB | 680 g |
| 1 TB, 500 GB | 450 g | |
- Video Editing Systems
- Set-Top-Box (STB)
- Digital Video Recorders (DVR)
- Network Video Recorders (NVR)
| Capacity | Max Data Transfer Speed | Power Consumption ( Low Power Idle ) ( Typ. ) |
Model Number |
|---|---|---|---|
| 3 TB | 1493 Mbit/s | 4.2 W | DT01ABA300V |
| 2 TB | 1432 Mbit/s | 3.3 W | DT01ABA200V |
| 1 TB | 1443 Mbit/s | 3.0 W | DT01ABA100V |
| 500 GB | 1 head : 1443 Mbit/s 2 head : 1272 Mbit/s |
3.0 W | DT01ABA050V |

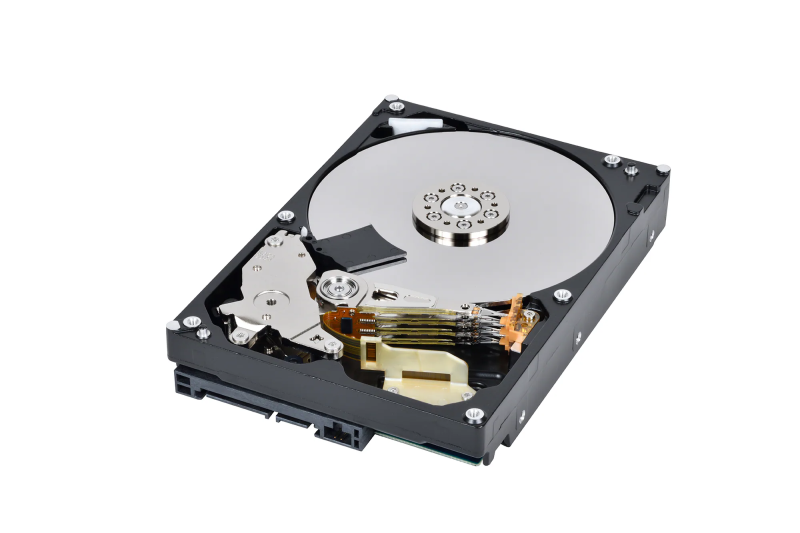

- Product image may represent a design model.
- Definition of capacity: Toshiba defines a megabyte (MB) as 1,000,000 bytes, a gigabyte (GB) as 1,000,000,000 bytes and a terabyte (TB) as 1,000,000,000,000 bytes. A computer operating system, however, reports storage capacity using powers of 2 for the definition of 1GB = 230 = 1,073,741,824 bytes and therefore shows less storage capacity. Available storage capacity (including examples of various media files) will vary based on file size, formatting, settings, software and operating system, such as Microsoft Operating System and/or pre-installed software applications, or media content. Actual formatted capacity may vary.
- A kibibyte (KiB) means 210, or 1,024 bytes, a mebibyte (MiB) means 220, or 1,048,576 bytes, and a gibibyte (GiB) means 230, or 1,073,741,824 bytes.
- Read and write speed may vary depending on the host device, read and write conditions, and file size.
- "2.5-inch" and "3.5-inch" mean the form factor of HDDs or SSDs. They do not indicate drive's physical size.
