Product Specification

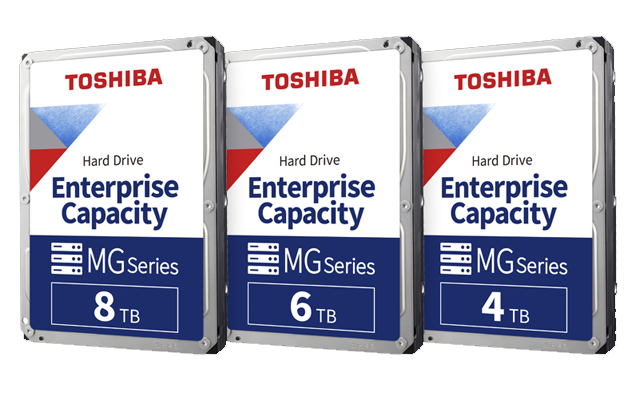

4TB - MG08ADA400N
8TB - MG08ADA800E
| Form Factor |
3.5-inch |
||
|---|---|---|---|
| Buffer Size |
256MiB |
||
| Rotation Speed |
7200rpm |
||
|
Data Transfer Speed |
8TB |
4Kn/512e |
248MiB/s |
|
6TB |
4Kn/512e |
239MiB/s |
|
| 4TB | 4Kn/512e | 243MiB/s | |
| 512n | 222MiB/s | ||
|
Power Consumption |
SATA |
8TB |
5.61W |
| 6TB | 4.90W | ||
| 4TB | 4.07W | ||
|
SAS |
8TB | 5.61W | |
| 6TB | 4.90W | ||
| 4TB |
4.50W |
||
| MTTF/MTBF(AFR) |
2 000 000h (0.44%) |
||
| Weight ( Max ) | 8TB |
720g |
|
| 6TB | 700g | ||
| 4TB | 693g | ||
10TB - MG06ACA10TE
| Form Factor |
3.5-inch |
||||
|---|---|---|---|---|---|
| Buffer Size |
256MiB |
||||
| Rotation Speed |
7200rpm |
||||
|
Data Transfer Speed |
10TB | 4Kn/512e |
237MiB/s |
||
|
Power Consumption |
Random Read/Write (4KB Q1) | 10TB |
10.0 W Typ. |
||
| Active Idle ( Idle-A ) | 10TB | 7.3 W Typ. | |||
| Supply Voltage (Allowable Voltage) | 12 V ± 10% / 5 V +10/-7% | ||||
| Logical Data Block Length) | MG06ACAxxxE (emulation) |
Host 512B Disk 4,096B |
|||

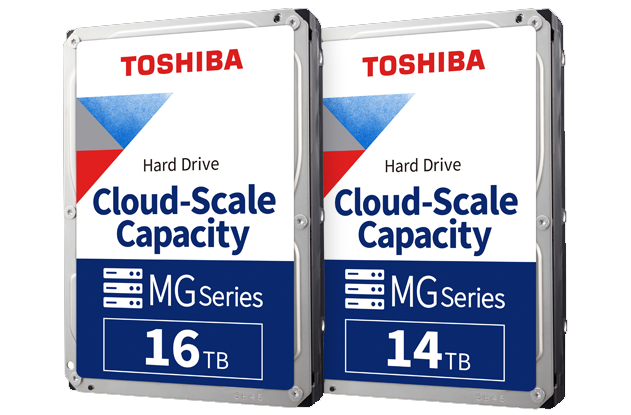

16TB - MG08ACA16TE
| Form Factor | 3.5-inch | ||
|---|---|---|---|
| Buffer Size | 512 MiB | ||
| Rotation Speed | 7200 rpm | ||
| Maximum Data Transper Speed (Sustained)(Typ.) |
262MiB/s | ||
| Power Consumption (Idle-A) |
SATA | 16TB | 4.00W |
| - | - | ||
| MTTF/MTBF(AFR) | 2 500 000 h(0.35%) | ||
| Weight (Max) | 18TB | 720g | |
18TB - MG09ACA18TE
| Form Factor | 3.5-inch | ||
|---|---|---|---|
| Buffer Size | 512 MiB | ||
| Rotation Speed | 7200 rpm | ||
| Maximum Data Transper Speed (Sustained)(Typ.) |
268MiB/s | ||
| Power Consumption (Idle-A) |
SATA | 18TB | 4.16W |
| - | - | ||
| MTTF/MTBF(AFR) | 2 500 000 h(0.35%) | ||
| Weight (Max) | 18TB | 720g | |
20TB - MG10ACA20TE
| Form Factor | 3.5-inch | ||
|---|---|---|---|
| Buffer Size | 512 MiB | ||
| Rotation Speed | 7200 rpm | ||
| Maximum Data Transper Speed (Sustained)(Typ.) |
268MiB/s | ||
| Power Consumption (Idle-A) |
SATA | 20TB | 4.38W |
| - | - | ||
| MTTF/MTBF(AFR) | 2 500 000 h(0.35%) | ||
| Weight (Max) | 20TB | 720g | |
22TB - MG10AFA22TE
| Form Factor | 3.5-inch | |
|---|---|---|
| Buffer Size | 512 MiB | |
| Rotation Speed | 7200 rpm | |
| Maximum Data Transper Speed (Sustained) (Typ.) |
271 MiB/s | |
| Power Consumption (Idle-A) |
- | - |
| SATA | 4.35 W | |
| MTTF/MTBF (AFR) | 2 500 000 h (0.35 %) | |
| Weight (Max) | 720 g | |
