General specifications
- Sockets supported (Intel)
LGA 1700*/ 1851*/1150/1151/1155/1156/1200 LGA 1366/2011/2011-3/2066 - Sockets supported (AMD)
AM5 / AM4/FM2+/FM2/ FM1/AM3+/AM3/AM2+/AM2 - * Compatible using updated LGA 1700 bracket, contact Fractal support to request one if using an older version
- Cold plate material
Copper - Thermal paste
Pre-applied - Tube length
400mm - Tube material
Low-permeability rubber with braided nylon sleeve - Fittings, block side
Articulating 90-degree Elbow - Fittings, radiator side
Barbed fitting - Block height
43mm - Block measurements (with fittings)
79 x 67 mm - Block diameter (main block body)
67 mm
Fan specifications
- Fan type
Aspect 12 RGB PWM - Rotational speed
500–2000 RPM - Fan bearing
Rifle bearings - Fan PWM control
Yes - Fan acoustical noise
<10–33.2 dBA - Fan maximum air flow
13-56 CFM - Fan maximum static pressure
0.230–2.34 mm H2O - Fan input voltage
12V - Fan maximum input current
0.37A - Fan MTTF
90,000 hours
Pump specifications
- Rotational speed
4000 ± 10% RPM - Bearing type
Ceramic - PWM control
No - Acoustical noise (full speed)
22 dBA - Maximum pressure
1.8 mm H2O/ 17.6 kPa / 2.5 PSI - Input voltage
12V DC - Input current (without fans)
0.34 A - MTTF
50 000 hours
Radiator specifications
- Radiator dimensions
392 x 120 x 27 mm - Radiator housing material
Aluminum - Radiator fin material
Aluminum - Radiator fan screw threads
6-32
Other
- Package contents

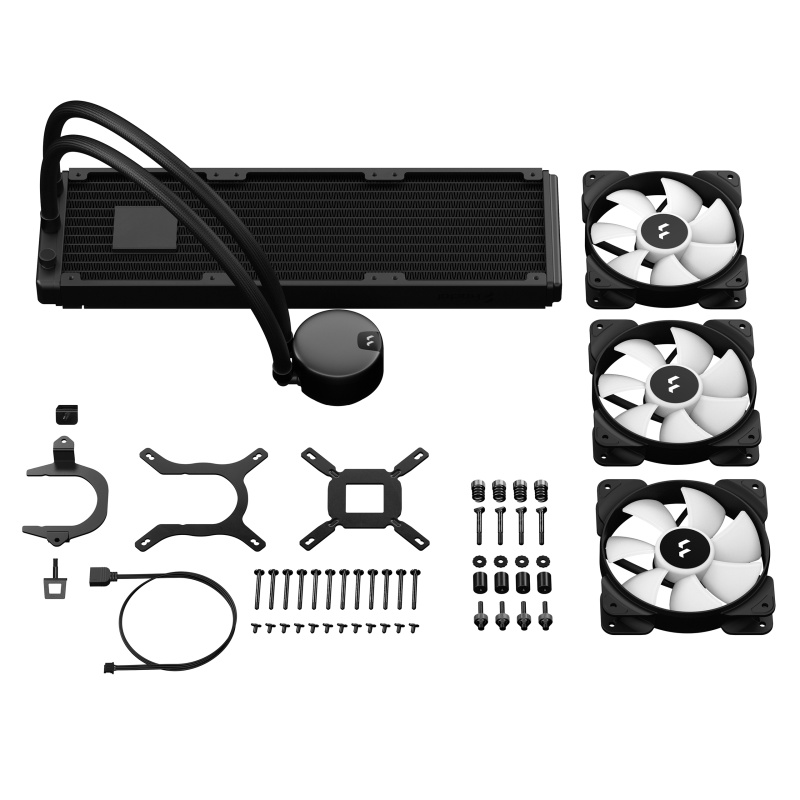

CPU Cooler Assembly, 3x Aspect 12 RGB fans, User manual, Intel mounting kit, AMD mounting kit, 5V ARGB cable - Package dimensions
448 x 205 x 137 mm - Package weight
2.20kg - EAN
7340172705956 - UPC
843276105952 - JAN
4537694317634 - Product Code
FD-W-L1-S3612
