Details

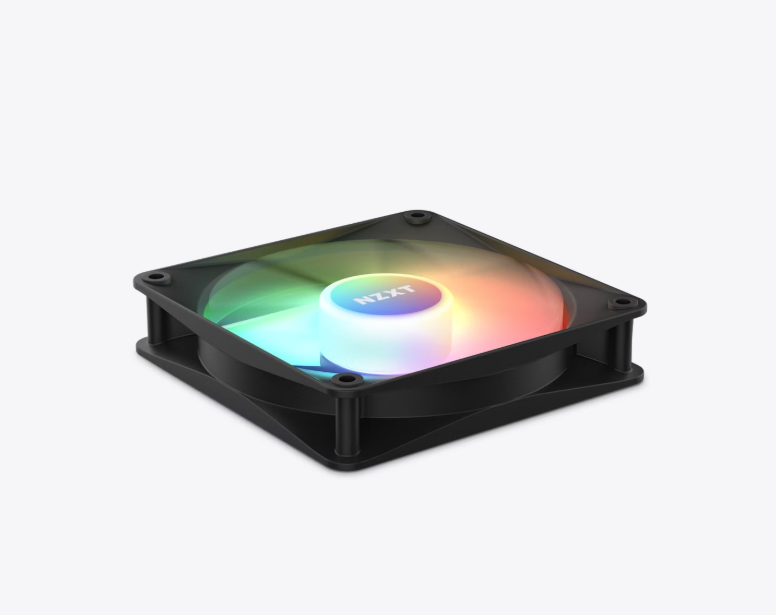

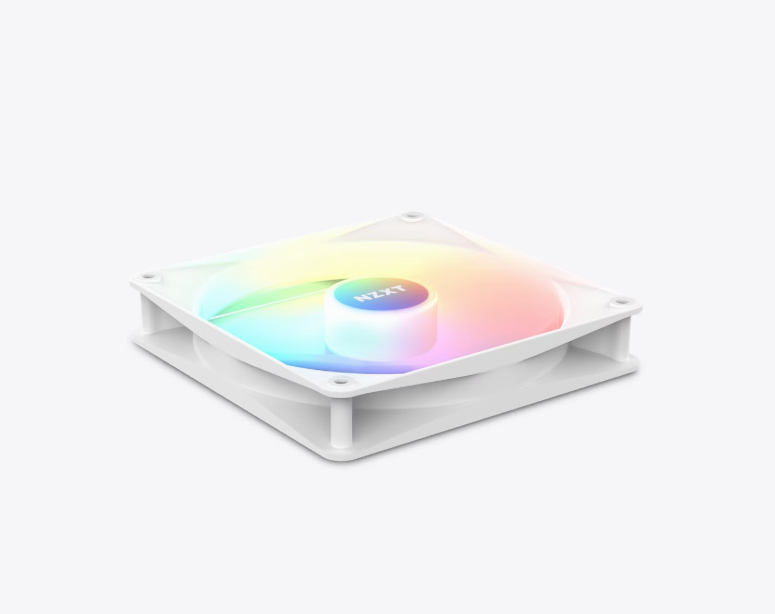

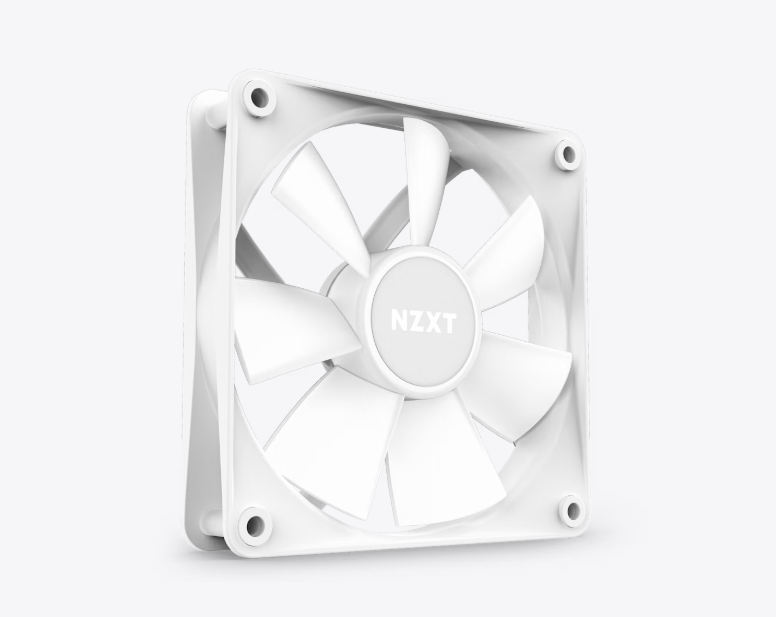

The F Series RGB Core Fans offer brilliant lighting with eight individually addressable RGB LEDs and premium cooling with high static pressure.
- Eight Individually addressable LEDs mounted on the fan hub are perfectly diffused through the semi-translucent blades for a sublime lighting effect.

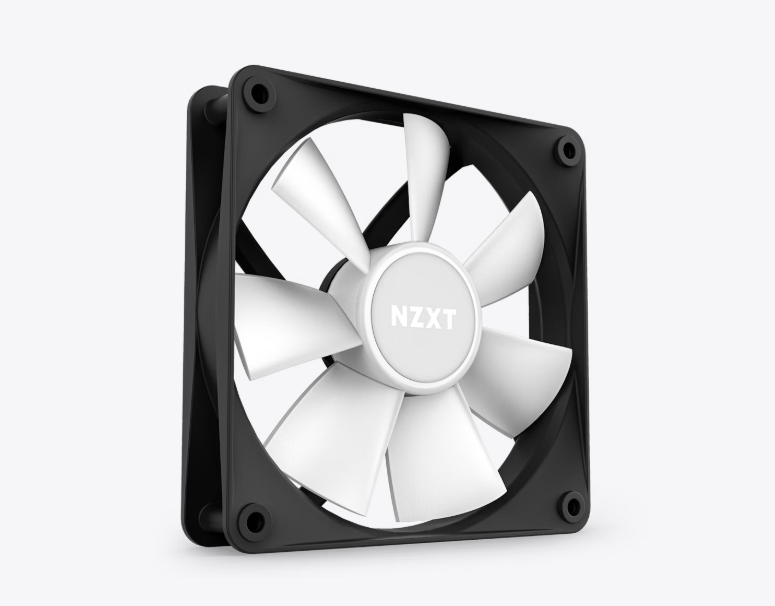

- A refined hub and blade design offer enhanced static pressure by pushing air through your radiator while providing great airflow. This allows for superior heat dissipation when paired with a liquid cooler or heatsink and used as intake, or exhaust.
- Personalized lighting combinations through NZXT CAM software.
- Seamlessly sync it with all your compatible NZXT lighting accessories.
- The PWM-controlled fan allows speed adjustment, offering the best cooling possible without compromising noise level.
- Fluid Dynamic Bearings deliver high rotational stability while reducing bearing noise and increasing fan lifespan up to 60,000 hours.
- Anti-vibration rubber corners dampen vibration noise at any speed.

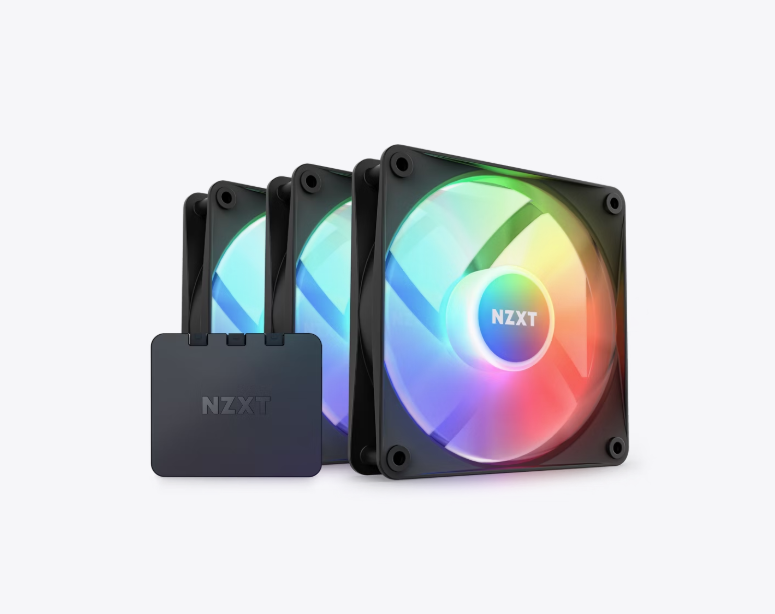

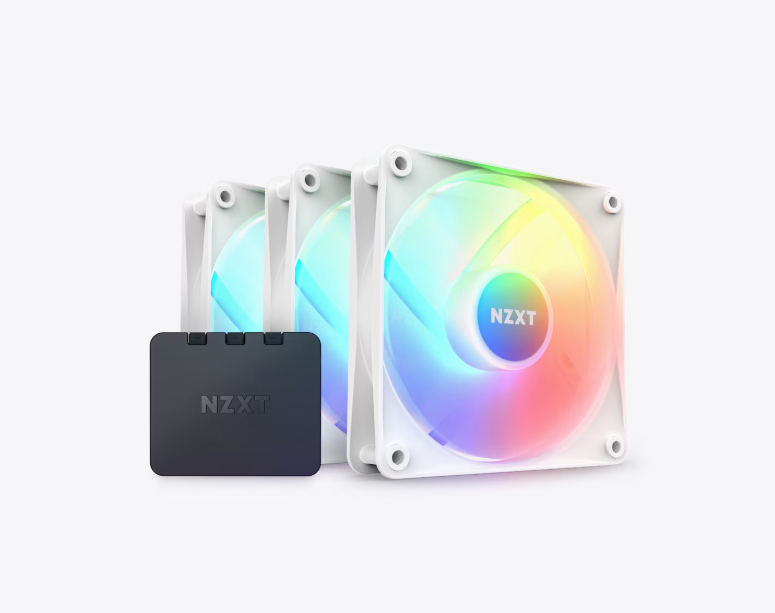

- Triple and twin packs include an NZXT RGB Controller with three channels for synchronized lighting control.
Tech Specs
Key Specs
-
Material:Plastic, rubber, PCB
-
Fan Rated Voltage:12 V DC, 0.2 A, 2.4 W
-
LED Quantity:8
-
Bearing:Fluid Dynamic Bearing (FDB)
-
Fan Connector:4-pin PWM
Dimensions
-
Height:120mm
-
Width:120mm
-
Depth:26mm
Cooling
-
Speed:500 - 1,800 ± 180RPM
-
Airflow:78.86 CFM
-
Static Pressure:2.57 mm H2O
-
Noise:33.88 dBA
-
Bearing:Fluid Dynamic Bearing
-
Power Consumption:12 V DC, 0.2 A, 2.4 W
-
Connector:4-pin PWM
-
Output LED:8 LEDs
-
Connections & Cable Length (PWN):4-pin PWM Fan Cable – 600mm x1
-
Connections & Cable Length (NZXT):4-pin NZXT RGB Cable – 600mm x1
Fan Life
-
Hours:60,000
-
Years:6

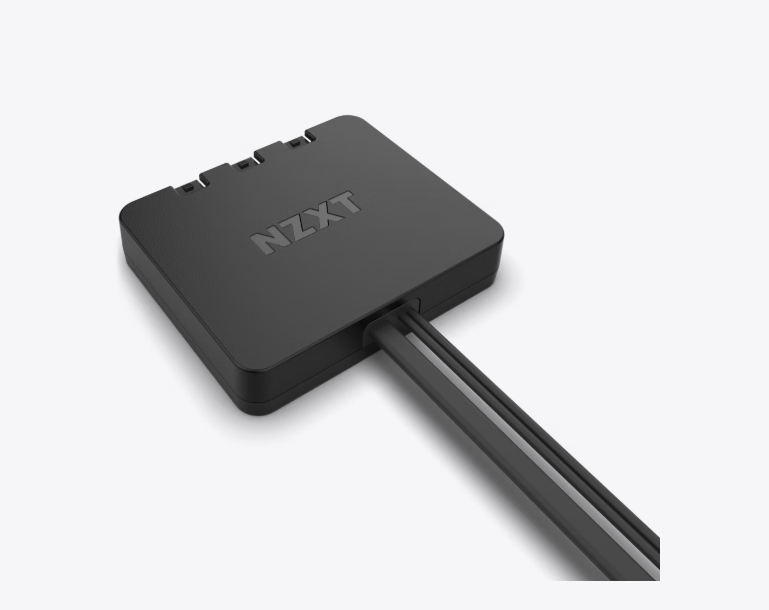

RGB Controller
-
Dimensions:63.2 x 53.2 x 12.8mm
-
Weight:52.8g
-
Material(s):Plastic, PCB, Magnets
-
Mounting:2x 3M Dual Lock
-

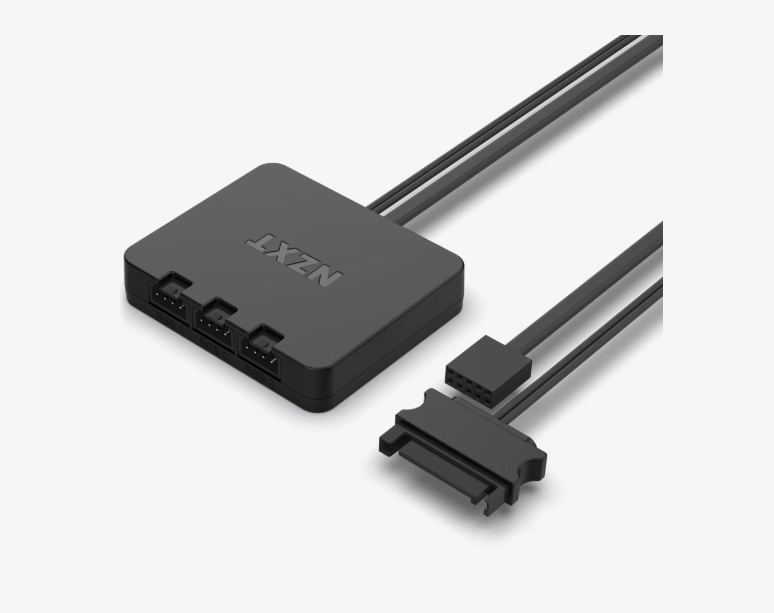

Connections:1 x USB 2.0 Header, 1 x SATA
-
Input Connector:12V DC / 2.6A
-
Output Channel Voltage:5V DC
-
System Requirement:Requires a USB 2.0 internal connector
-
RGB Lighting Channels:3
-
Lighting channels support:Up to 40 LEDs per channel and up to 120 LEDs combined total for the total 3 channels
General
-
Warranty:2 years
-

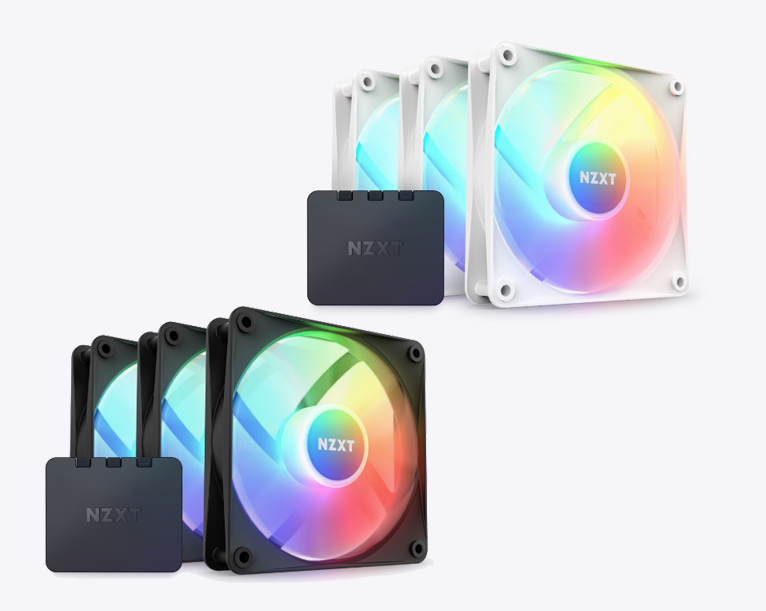

Model Number:RF-C12TF-W1 (White) / RF-C12TF-B1 (Black)
-
UPC:810074843072 (White) / 810074843065 (Black)
-
EAN:5056547203010 (White) / 5056547203003 (Black)
-
System Requirement:PC with available NZXT RGB lighting connector and Windows 11/10 operating system.
