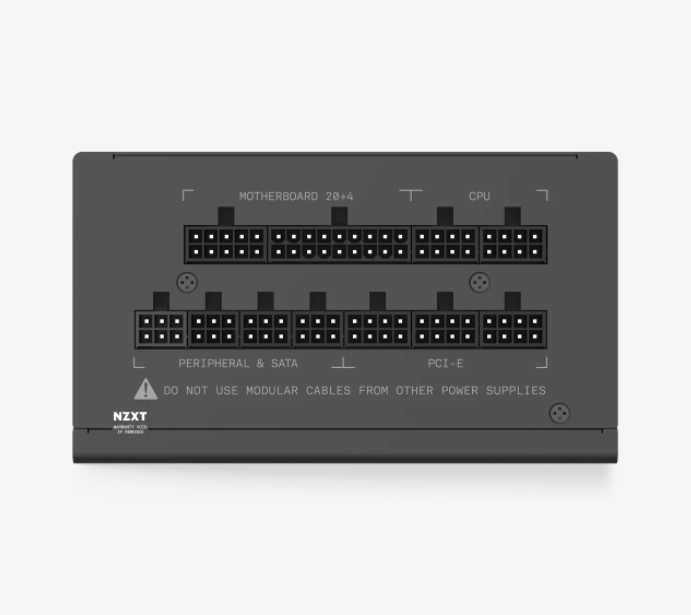

OUTPUT CONNECTORS
-
24-pin ATX power:1
-
4+4-pin CPU power:2
-
6+2-pin PCIe power:6
-
SATA power:8
-
Peripherals:6
CABLE SPECS
-
24-pin ATX power:610mm, Nylon sleeving
-
4+4-pin CPU power:650mm, Nylon sleeving
-
6+2-pin PCIe power:675 + 75mm, Nylon sleeving
-
SATA power:500 + 100 + 100 + 100 mm
-
Peripherals:500 + 100 + 100 mm
AC INPUT RATING
-
100 - 240Vac:12-6A 50-60Hz
DC OUTPUT RATING
-
+3.3V and +5V:20A (Combined 100W)
-
+12V:70A (840W)
-
-12V:0.3A (3.6W)
-
5Vsb:3A (15W)
-
Total:850W
OPERATION
-
PF Correction:Active @0.99
-
MTBF:100,000 hours
-
Temperature:0 - 50 °C (derating from 100% to 80% from 40 °C to 50 °C)
ENERGY EFFICIENCY
-
Rating:80 Plus Gold
-
20% loading:87% @115Vac
-
50% loading:90% @115Vac
-
100% loading:87% @115Vac
FAN SPECS
-
Dimensions:120 x 120 x 25 mm
-
Speed:0 - 2,200 ± 200 RPM
-
Airflow:73.9 CFM
-
Noise:32.3 dBA
-
Bearing:Fluid Dynamic Bearing (FDB)
GENERAL
-
Dimensions:150 x 150 x 86mm
-
Material(s):Steel, PCB and Plastic
-
Compliance Standard:ATX12V v2.4 / EPS12V v2.92
-
Regulation & Certification:CB / CE / FCC / TUV / cTUV-SUDus / China CCC / Taiwan BSMI / Australia RCM / EAC
-
Warranty:10 years
-
Model Number:NP-C850M
UPC
-
UPC (TW):815671015662
-
UPC (CN):815671015754
-
UPC (AR):815671015778
-
UPC (US):815671015785
-
UPC (EU):815671015792
-
UPC (UK):815671015808
-
UPC (AU):815671015815
-
UPC (JP):815671015990
-
UPC (WO):815671015822
EAN
-
EAN (TW):5060301695522
-
EAN (CN):5060301695584
-
EAN (AR):5060301695607
-
EAN (US):5060301695614
-
EAN (EU):5060301695621
-
EAN (UK):5060301695638
-
EAN (AU):5060301695645
-
EAN (JP):5060301695829
-
EAN (WO):5060301695652
