Specifications
- 3.5"/2.5" Universal drive mounts
2 (included) - Dedicated 2.5" drive mounts
4 (2 included) - Expansion slots

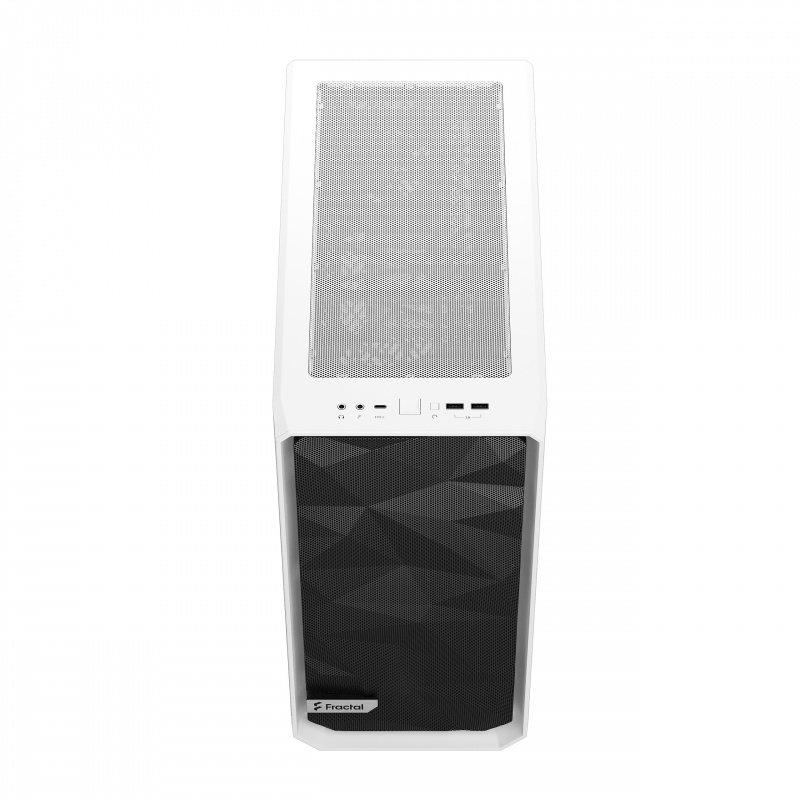

7 - Front interface
1x USB 3.1 Gen 2 Type-C, 2x USB 3.0, Audio I/O, Power button, Reset button - Total fan mounts
7x 120 or 4x 140 mm and 2x 120 mm - Front fan
3x 120 or 2x 140 mm, (2x Dynamic X2 GP-14 included) - Top fan
2x 120/140 mm - Rear fan
1x 120 mm, (1x Dynamic X2 GP-12 included) - Bottom fan
1x 120 mm (requires removal of HDD cage) - Dust filters
Top, front and bottom - Fixed velcro straps
Yes - Cable routing grommets
Yes - Captive thumbscrews
HDD, SSD and PSU brackets - Left side panel

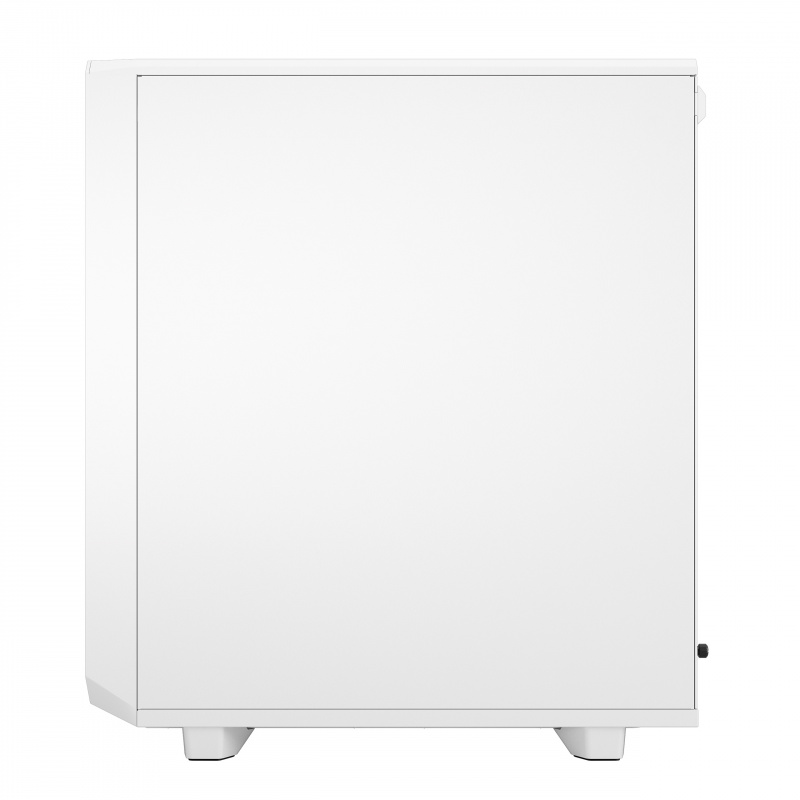

Steel - Right side panel
Steel
Compatibility
- Motherboard compatibility
ATX / mATX / Mini-ITX - Power supply type
ATX - PSU max length
200 mm (165 mm with HDD cage and front fan) - GPU max length
341 mm (360 mm without front fan) - CPU cooler max height
169 mm - Front radiator
Up to 360/280 mm - Top radiator
Up to 240 mm - Rear radiator
120 mm - Bottom radiator
120 mm (requires removal of HDD cage) - Cable routing space
17-28 mm - Radiator Support – Additional Details
Maximum radiator width: 145mm for front mounting. Maximum motherboard component height for top mounted radiator: 40 mm. For more details, consult the manual.
Dimensions
- Case dimensions (LxWxH)
424 x 210 x 475 mm - Case dimensions w/o feet/protrusions/screws
412 x 210 x 455 mm - Package dimensions (LxWxH)
542 x 320 x 554 mm - Net weight
Solid: 7.7 kg TG: 8.1 kg - Gross weight
Solid: 9.3 kg TG: 9.8 kg - Volume
39.4 Liters
Other
- Warranty
2 Years - Package contents
Meshify 2 Compact Case, User manual, Accessory box - Meshify 2 Compact Black Solid
SKU: FD-C-MES2C-01, EAN: 7340172702320, UPC: 843276102326, JAN: 4537694276801 - Meshify 2 Compact Black TG Dark Tint
SKU: FD-C-MES2C-02, EAN: 7340172702337, UPC: 843276102333, JAN: 4537694276818 - Meshify 2 Compact Black TG Light Tint
SKU: FD-C-MES2C-03, EAN: 7340172702344, UPC: 843276102340, JAN: 4537694276825 - Meshify 2 Compact Gray TG Light Tint
SKU: FD-C-MES2C-04, EAN: 7340172702351, UPC: 843276102357, JAN: 4537694276832 - Meshify 2 Compact White TG Clear Tint

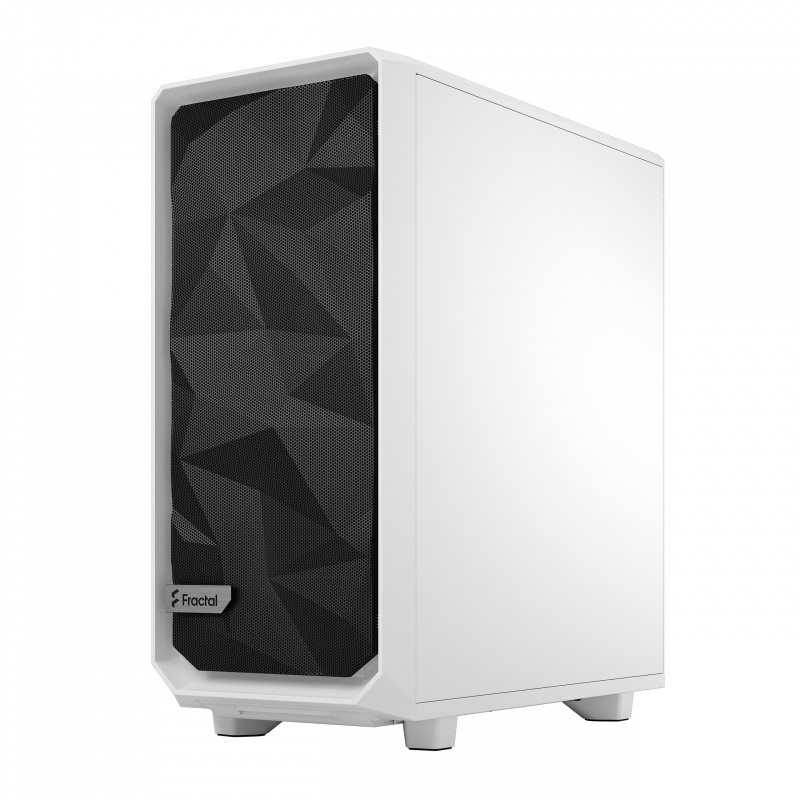

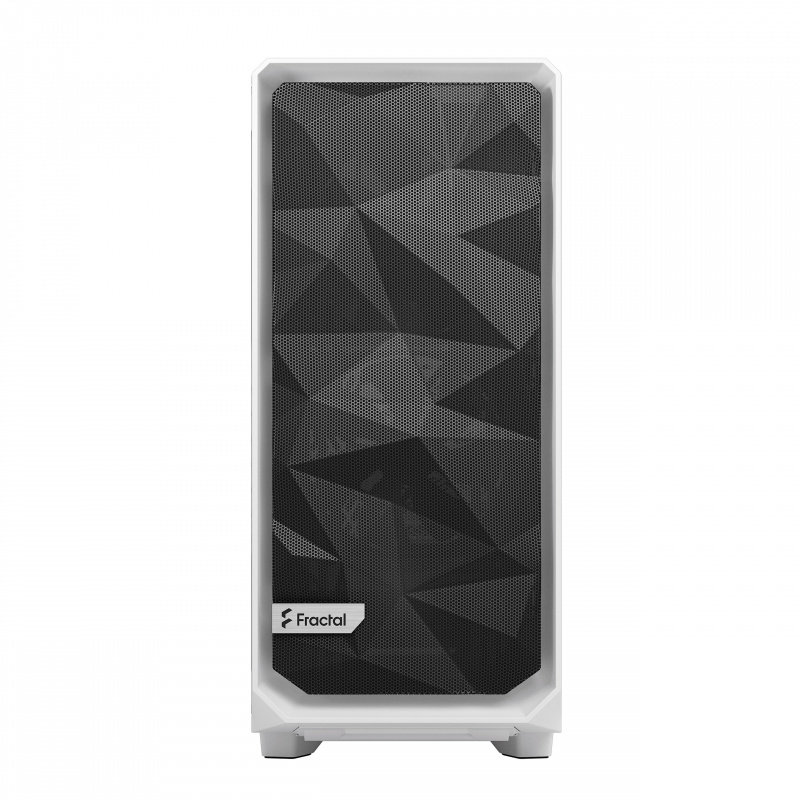

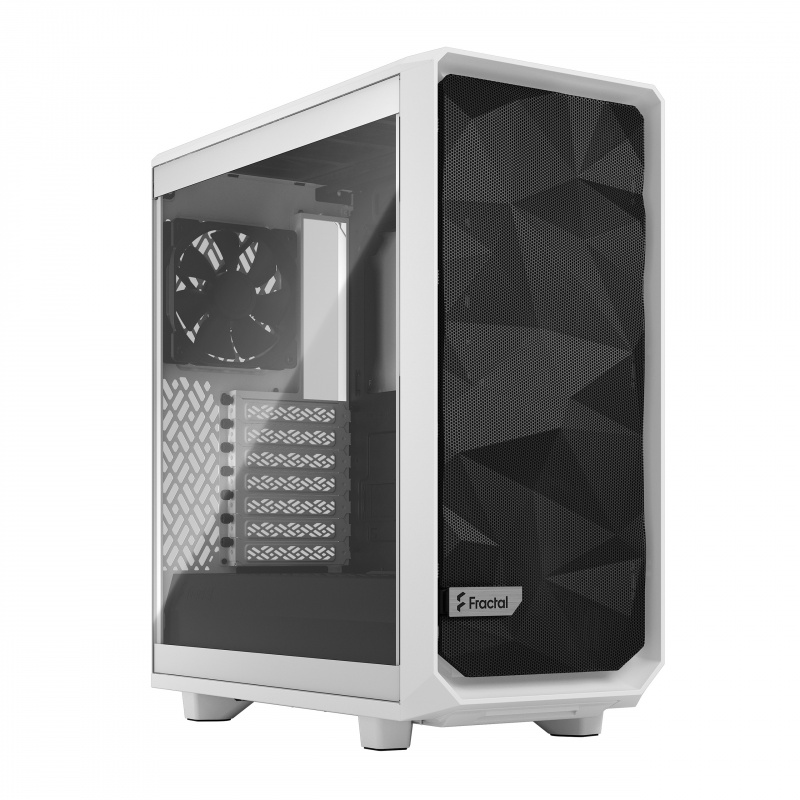

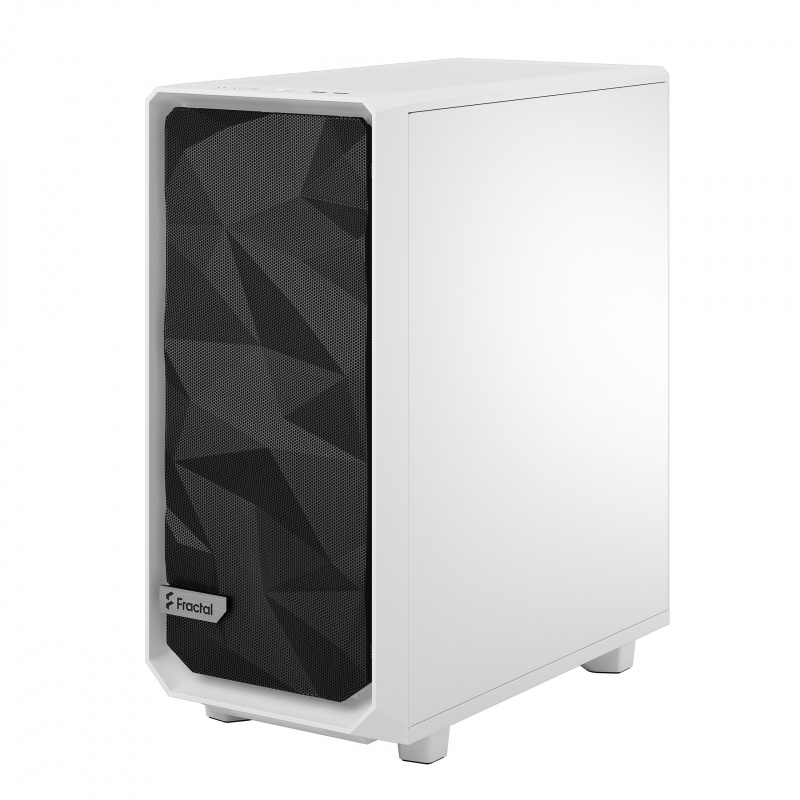

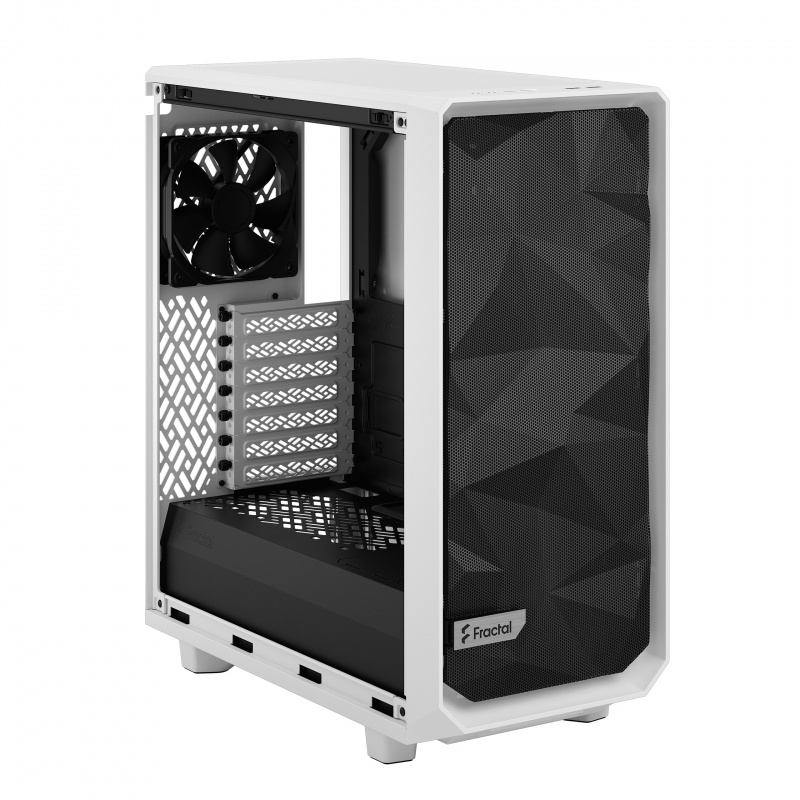

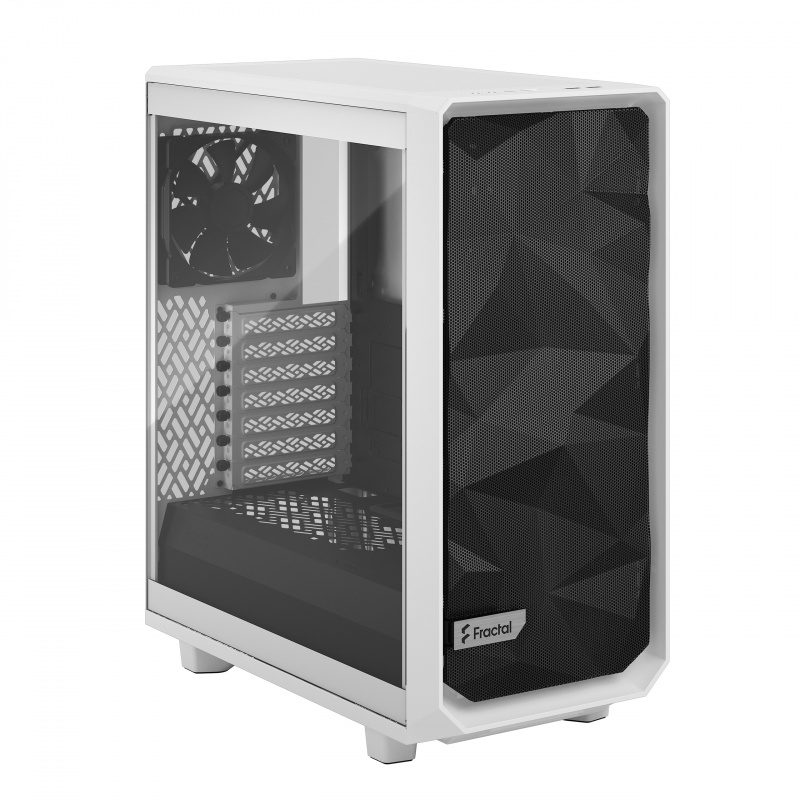

SKU: FD-C-MES2C-05, EAN: 7340172702368, UPC: 843276102364, JAN: 4537694276849
