ProArt Router PRT-BE5000
Network Standard
IPv6
IPv4
WiFi 7 (802.11be)
WiFi 6 (802.11ax)
WiFi 5 (802.11ac)
WiFi 4 (802.11n)
IEEE 802.11g
IEEE 802.11b
IEEE 802.11a
Product Segment
BE5000 ultimate BE performance : 688+4320 Mbps
WiFi Data Rate
WiFi 7 (802.11be) (5GHz): up to 4320 Mbps
WiFi 7 (802.11be) (2.4GHz): up to 688 Mbps
Antenna
5*Internal Antennas (2*2.4GHz + 3*5GHz )
Transmit / Receive
5GHz 3x3
2.4GHz 2x2
Processor
2.0 GHz quad-core processor
Memory
128 MB Flash
1 GB RAM
Boosts Speed
OFDMA (Orthogonal Frequency Division Multiple Access)
4096-QAM high data rate
20/40/80/160 MHz bandwidth
Operating Frequency
5 GHz
2.4 GHz
Operating Mode
Wireless router mode
AiMesh node mode

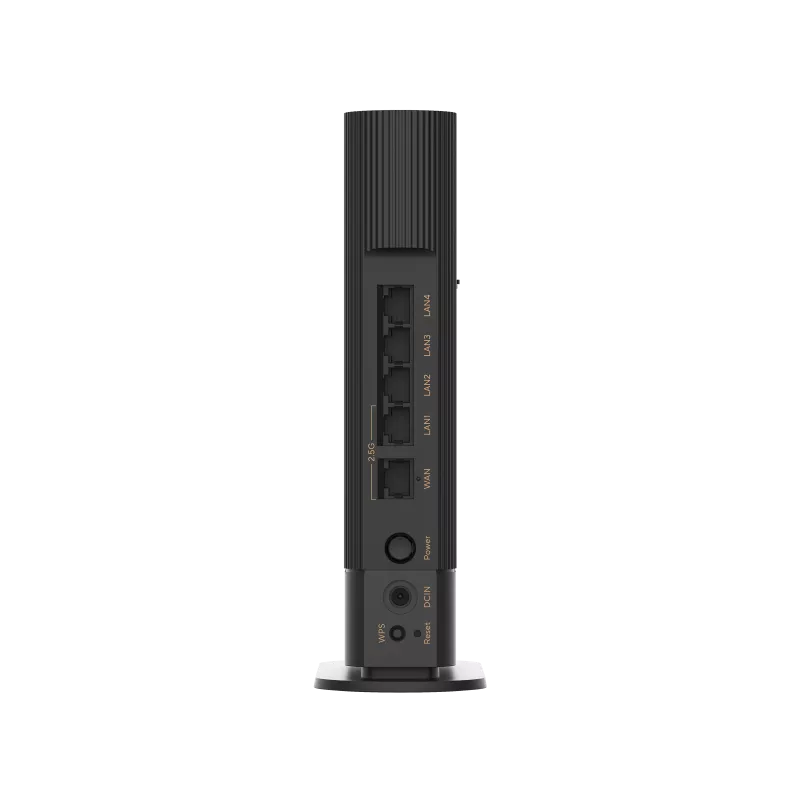

I/O Ports
1x 2.5G for WAN,
1x 2.5G for LAN,
3 x 1G LAN
Buttons
WPS Button, Reset Button, Power Button
LED Indicator
Power & Status Combo LED x 1
Power Supply
AC Input : 100V~240V (50~60Hz)
DC Output : 12 V with max. 2 A current
Package Content
PRT-BE5000
RJ-45 cable
Power adapter
Quick Start Guide
Warranty card
Product Weight (g)
503.7 g
Product Dimensions
131 x 37.5 x 200 mm
AiMesh
AiMesh, • Primary AiMesh Router, • AiMesh Node
Parental Control
Time Scheduling, Safe Browsing, Customized Internet Schedule
Security
AiProtection, VPN, WPA/WPA2/WPA3 Personal
WPA/WPA2/WPA3 Enterprise, WPS, Let's Encrypt, DNS-over-TLS, SSH, Security Scan, Firewall, • Maximum Firewall Keyword Filter : 64, • Maximum Firewall Network Service Filter : 32, • Maximum Firewall URL Filter : 64
AiProtection
AiProtection, • Router Security Assessment, • Malicious Site Blocking
VPN
Instant Guard, VPN Client L2TP, VPN Client Open VPN, VPN Client PPTP, VPN Client WireGuard, VPN Server IPSec, VPN Server Open VPN, VPN Server PPTP, VPN Server WireGuard, VPN Fusion
Traffic Control
Traffic Monitor, • Real-time Traffic Monitor, • Wired Traffic Monitor, • Wireless Traffic Monitor, Traffic Analyzer, • Traffic Analysis Period : Daily, Weekly, Monthly, • Website History
WAN
Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP, DMZ, DDNS, NAT Passthrough : PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, SIP Pass-Through, PPPoE relay
LAN
DHCP Server, IGMP Snooping, IPTV, Manually Assign IP Address
Wireless
MU-MIMO, WiFi MAC Address Filter
User Interface
WEB: ASUSWRT, APP: ASUS Router APP
Administration
Configuration Backup and Restore, Diagnosis tools, Feedback System, System Log, New Device Connect Notification, Login Captcha, Connection Diagnosis, Auto Firmware Update
- Products certified by the Federal Communications Commission and Industry Canada will be distributed in the United States and Canada. Please visit the ASUS USA and ASUS Canada websites for information about locally available products.
- All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
- Specifications and features vary by model, and all images are illustrative. Please refer to specification pages for full details.
- PCB color and bundled software versions are subject to change without notice.
- Brand and product names mentioned are trademarks of their respective companies.
- The terms HDMI and HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.
- The actual transfer speed of USB 3.0, 3.1, 3.2, and/or Type-C will vary depending on many factors including the processing speed of the host device, file attributes and other factors related to system configuration and your operating environment.
- Actual data throughput and WiFi coverage will vary from network conditions and environmental factors, including the volume of network traffic, building material and construction, and network overhead, result in lower actual data throughput and wireless coverage.
- Quoted network speeds and bandwidth based on current IEEE 802.11ac specifications. Actual performance may be affected by network and service provider factors, interface type, and other conditions. Connected devices must be 802.11ac-compatible for best results.
- WPA/WPA2 enterprise is only available on single router, is not available under AiMesh mode.
- When traditional QoS is enabled, there will be limitations due to the actual Internet service bandwidth and different environment, and there may be a risk of speed reduction.
- Due to the different power supply requirements on USB external hard disk and 4G/5G Modem device, to ensure that the external device can be used stably, if the USB external device exceeds the standard USB 2.0 (5V/500mA) and USB 3.1 Gen 1 (5V/900mA) power supply requirements, you need to use it with an independent external power supply.
- If you use the product in conjunction with a third party service, you are responsible for complying with the third party provider's terms and conditions and privacy policy and are also at the risk of such use. ASUS does not provide support or guarantee continuous integration support for products that are not part of ASUS.
- For models with Time machine support, starting with macOS 26 (Tahoe), Time Machine no longer supports creating new backups on USB-connected storage devices. Existing Time Machine drives that were previously configured remain compatible and can continue to be used for backup and restoration.
