Overview
Details

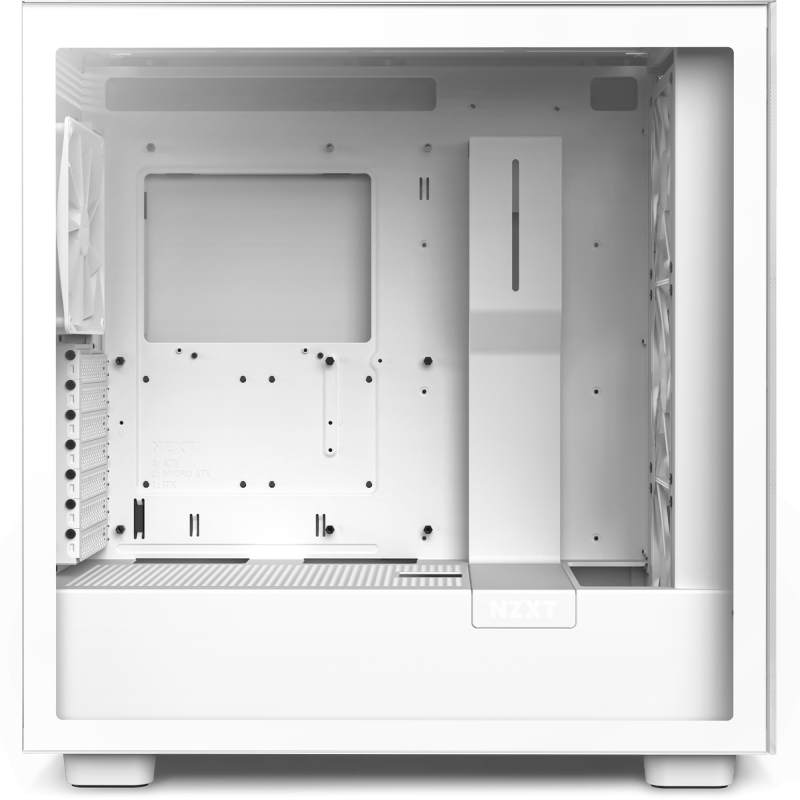

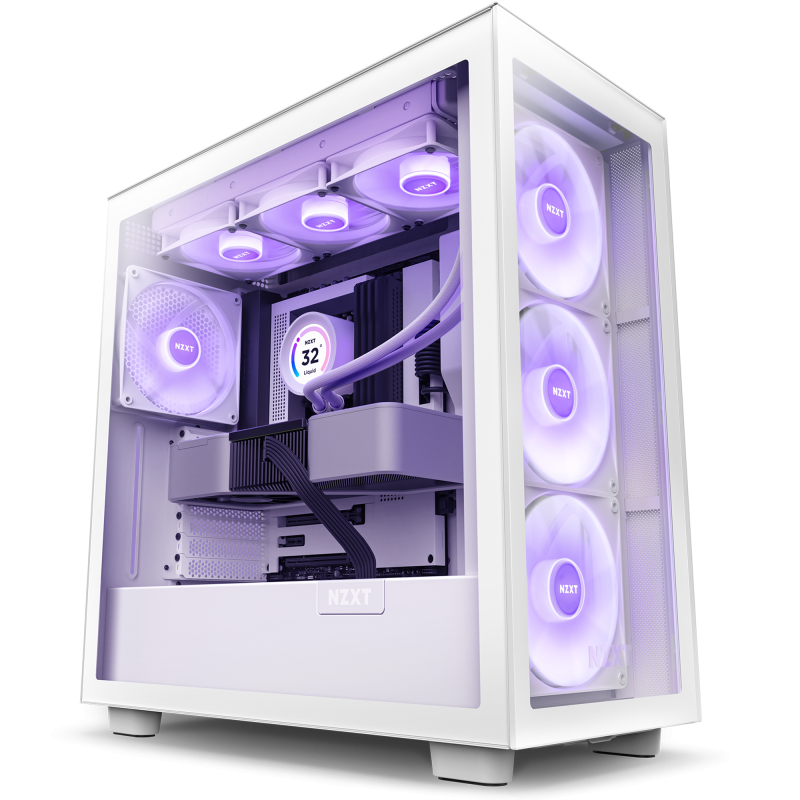

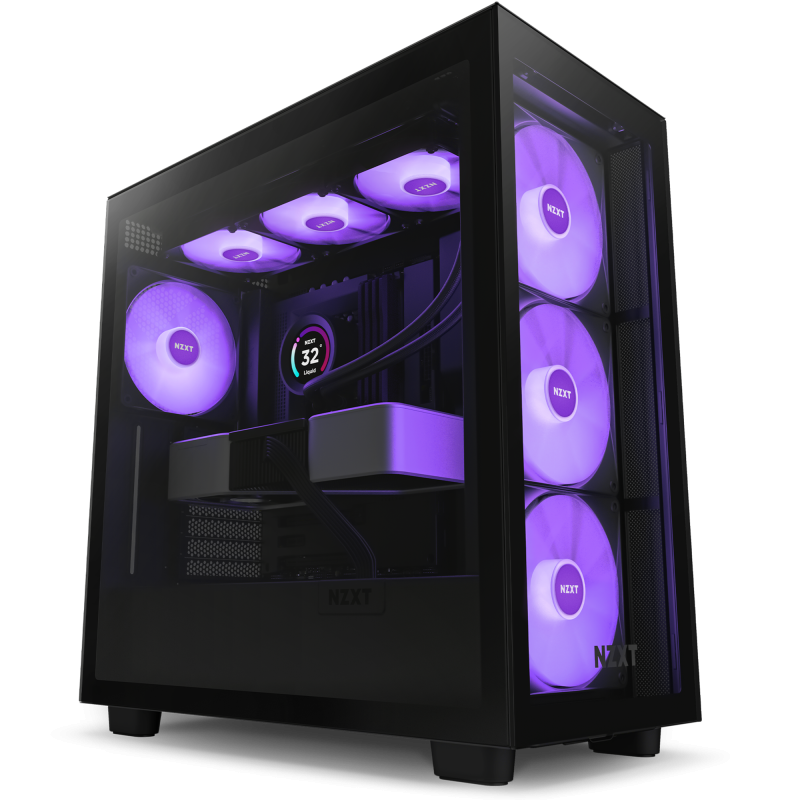

The H7 Elite is the premier choice for enthusiasts, featuring a tempered glass front panel to show off three pre-installed F140 RGB Core Fans, a built-in RGB Controller, widened channels, hooks, straps, and toolless entry.
- Perforated top panel

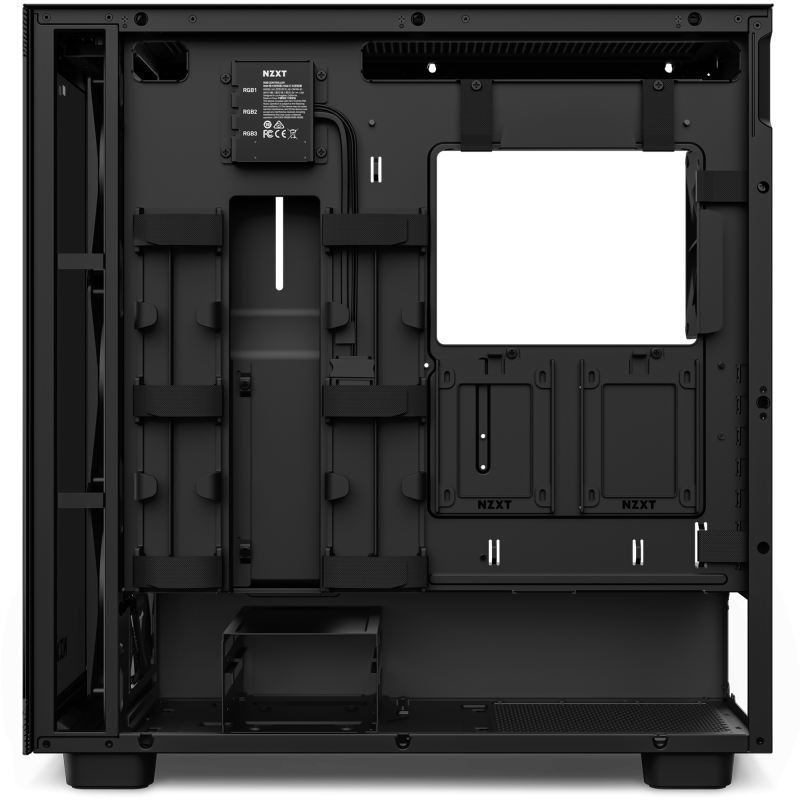

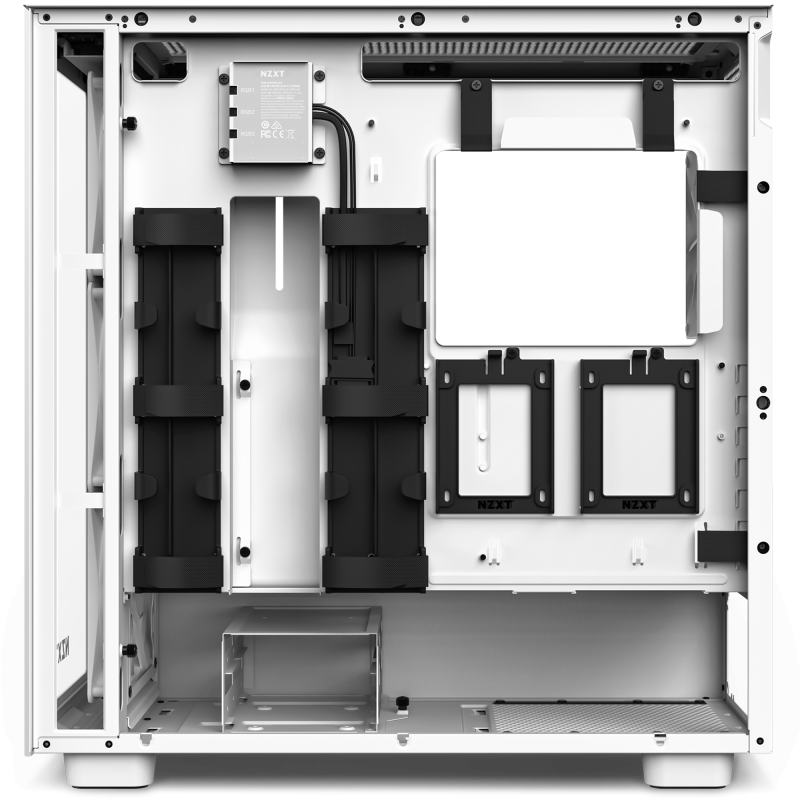

- Intuitive cable management system with wide channels, hooks, & straps

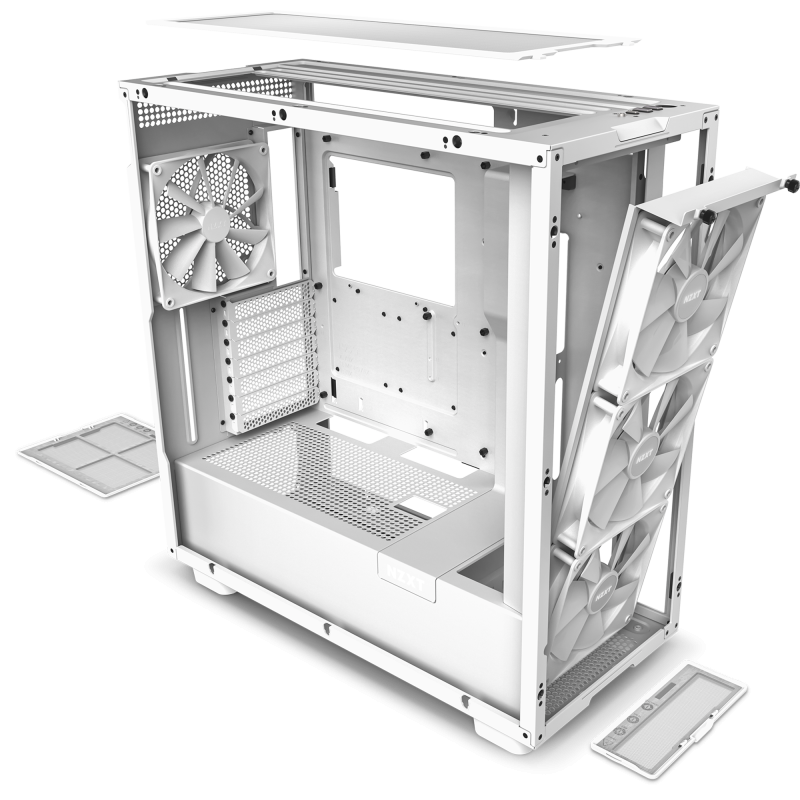

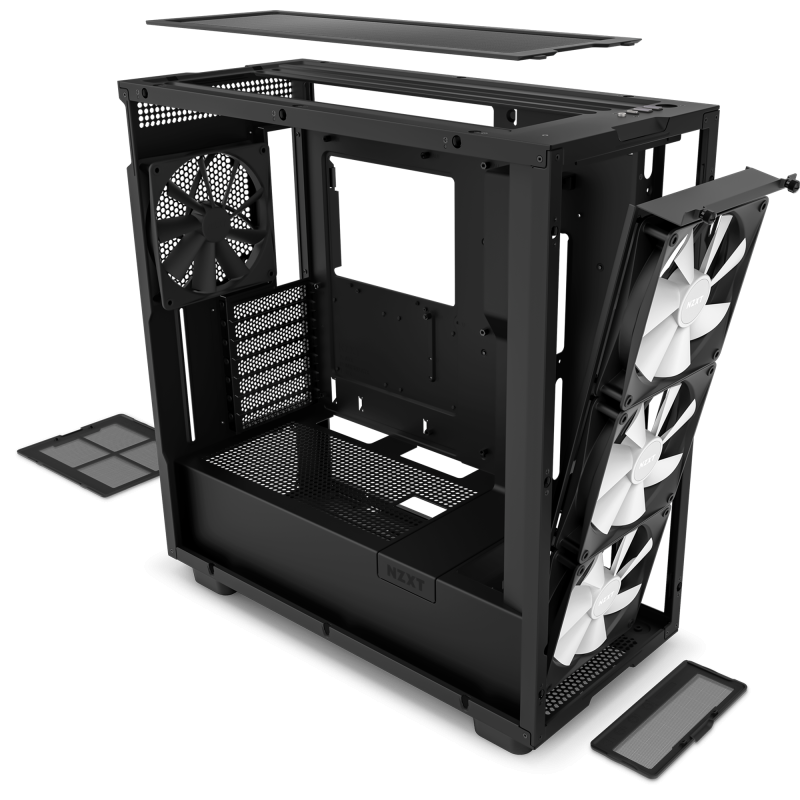

- Tool-less access to front & side panels (tinted panels on black variant only) to front & side panels
- Front & top support radiators up to 360mm
- Three pre-installed F140 RGB Core Fans
- One pre-installed F140Q Airflow Fan (Case Version)
- Supports vertical GPU mounting (Sold Separately)
- RGB Controller
- Tempered glass front panel
- Two top-mounted USB 3.2 Type-A ports
- One top-mounted USB 3.2 Type-C port

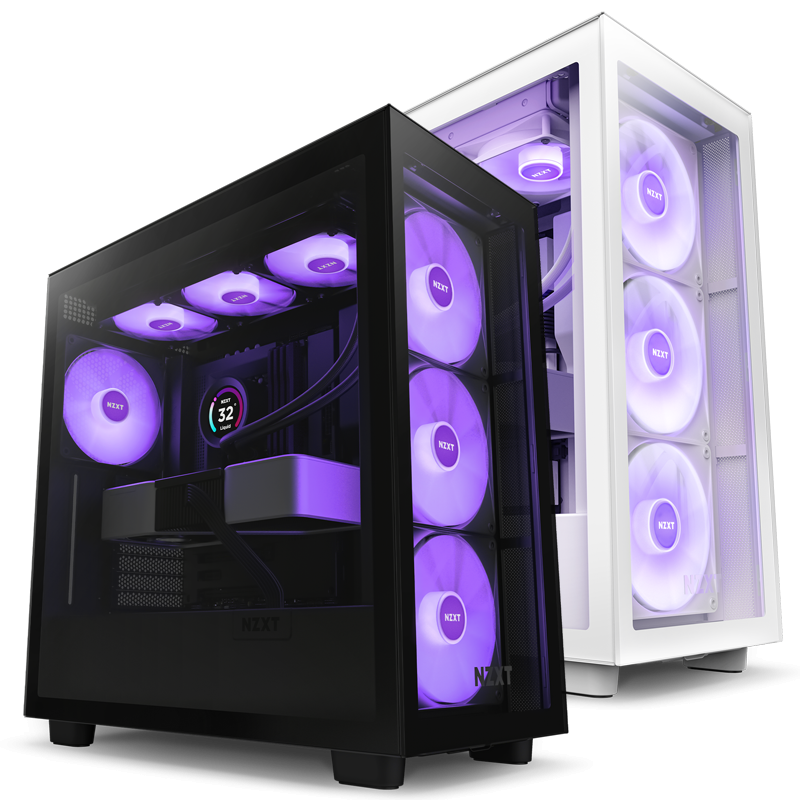

- Two color options (Matte Black, Matte White)
Inside the Box
-
H7 Elite Case -1
-
F140Q Airflow Fan (Case Version) (pre-installed) -1
-
F140 RGB Core Fan (pre-installed) -3
-
RGB Controller -1
-
Installation Accessories -1
-
Manual -1
Tech Specs
Key Specs
-
Motherboard Support:Mini-ITX, Micro-ATX, ATX
-
Enclosure Type:Mid-Tower
-
Case Material:SGCC Steel, Ultra-clear Tempered Glass, Dark Tinted Tempered Glass (Black only)
Dimensions
-
Height:505mm (With Feet)
-
Width:230mm
-
Depth:480mm
-
Weight:11.36 kg
Compatibility & Clearance
-
Max CPU Cooler Clearance:Up to 185mm
-
Max GPU Clearance:Up to 400mm
-
Front Radiator Clearance:60mm
-
Top Radiator Clearance:30mm
-
Cable Management:18-22mm
Front I/O Ports
-
USB 3.2 Gen 1 Type-A:2
-
USB 3.2 Gen 2x2 Type-C (20 Gbps):1
-
Headset Audio Jack:1
RGB Controller
-
NZXT RGB Connector:3 (Support up to 120 LEDs)
Expansion Slots
-
Standard:7
-
Vertical:0
Drive Bays
-
2.5":4+2
-
3.5":2
Fan Support
-
Front:3 x 120mm / 3 x 140mm
-
Top:3 x 120mm / 2 x 140mm
-
Rear:1 x 120mm / 1 x 140mm
-
Filters:All Air Intakes
Radiator Support
-
Front:Up to 360mm with Push/Pull
-
Top:Up to 360mm
-
Rear:Up to 140mm
Fan Specs
-
Model:F140Q (Case Version)
-
Speed:1200 ± 240RPM
-
Airflow:99.56 CFM
-
Static Pressure:1.14 mm-H2O
-
Noise:24.18 dBA
-
Fan Connector:3-pin
Fan Specs
-
Model:F140 RGB Core Fan
-
Speed:500-1,500 ± 150 RPM
-
Airflow:90.79 CFM
-
Static Pressure:3.22 mm H2O
-
Noise:34.48 dBA
-
Fan Connector:4-pin PWM
General
-
Warranty:2 Years
-
Model Number:CM-H71EW-02 (White) / CM-H71EB-02 (Black)
-
UPC:810074843607 (White) / 810074843591 (Black)
-
EAN:5056547203522 (White) / 5056547203515 (Black)
