The 11-in-1 port
laptop docking station provides convenient access to multiple devices on
your USB C laptops, tablets or phone. It can realize data reading,
computer control, video output and other functions simultaneously.

• 1 x USB-C PD port: 100 W charging power

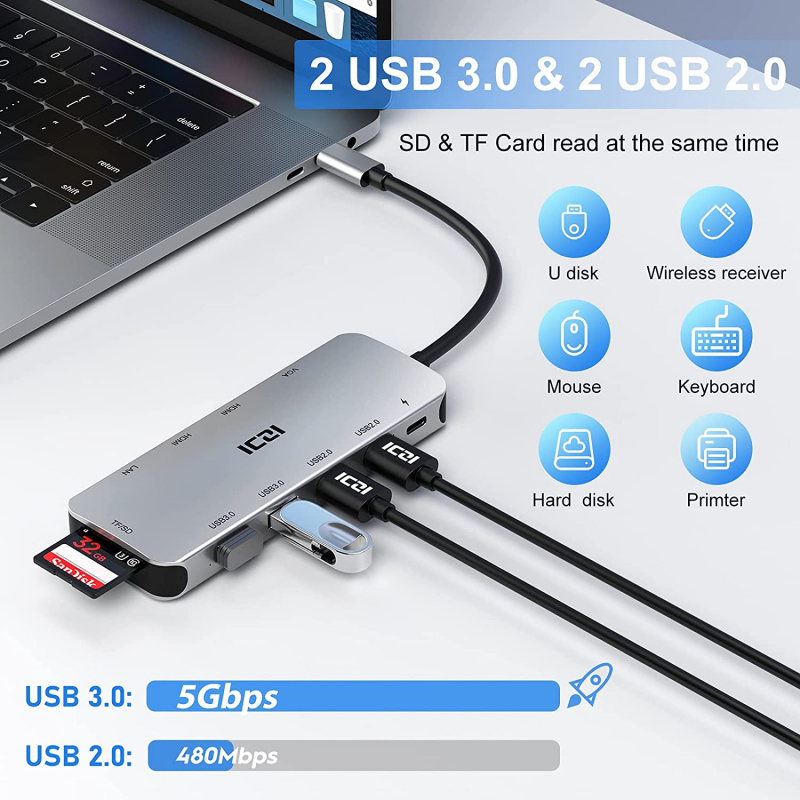

• 2 x USB 3.0 ports: Transfer rate of 5 Gbps

• 2 x USB 2.0 ports: Best for Bluetooth and WiFi, keyboards etc.

• 2 x 4K 30Hz HDMI port: 3D 4K @ 30Hz, 3840x2160p @ 30Hz

• 1 x 1080P@60Hz VGA port：1080P@60Hz

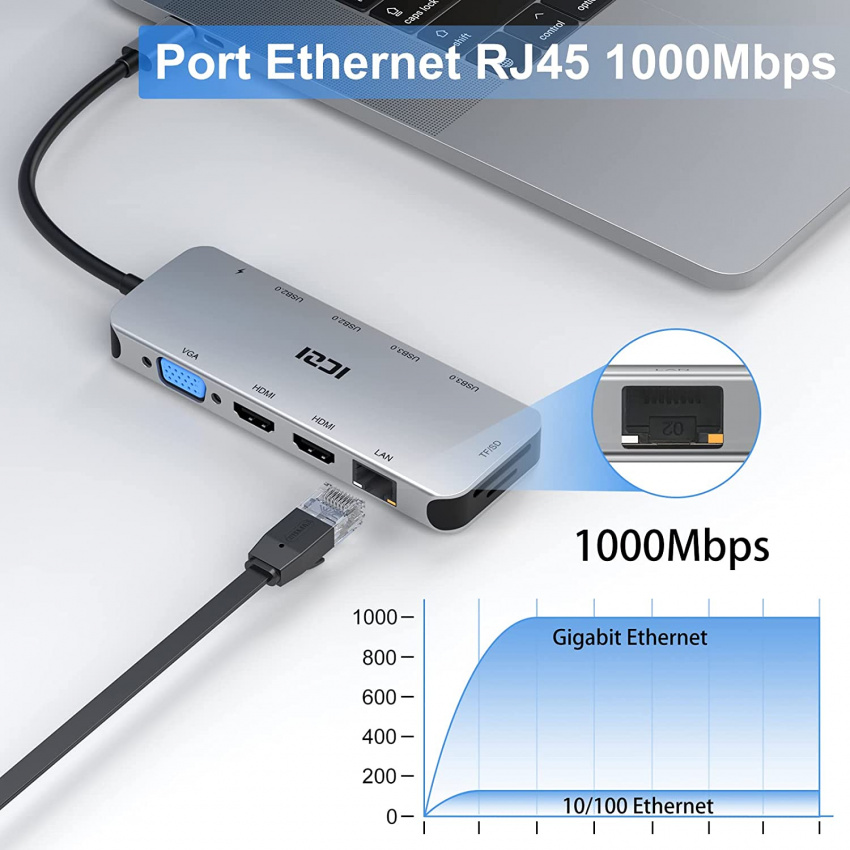

• 1 x Gigabit Ethernet Port: 1000 Mbps

• 1 x SD card slot: SD, SDHC, SDXC, MMC memory reader

• 1 x TF card slot: Micro SD, SDHC, SHXC memory reader

Premium Triple display

HDMI1 / HDMI2 / VGA instructions (Windows)

Windows replication mode (SST)

• Connect
  the HUB to the type-C female socket of the computer, and then use the
  HDMI/VGA video cable to connect the high-definition monitor, the system
  will automatically recognize the monitor, right-click on the white blank
  desktop on the monitor, click "Display Settings"-scroll to "Multiple
  Display Settings"-select "Copy Desktop to 1 and 2"

• The screen that appears is: the notebook displays screen "A" and all three displays display the same screen "A".

Windows Extended Mode (MST)

• Connect
  the HUB to the type-C female socket of the computer, and then use the
  HDMI/VGA video and audio cable to connect the high-definition monitor,
  the system will automatically recognize the monitor, right click on the
  white blank desktop on the monitor, click "Display Settings"-scroll down
  Go to "Multi-monitor settings"-select "Extend desktop 1 and 2"

• The
  screens that appear are: notebook display screen "A", one monitor
  display screen "B", and two monitors display the same screen "C".

notes:

When two and three monitors are connected, all resolution output is
1920*1080p 60HZ resolution, in the case of single HDMI connection, no
matter what mode, the output resolution is 3840*2160 30hz

Extend mode:

Instructions for HDMI1 / HDMI2 / VGA (Mac OS)

Connect the HUB to the Type-C female socket on the computer, and then
use the HDMI/VGA video and audio cable to connect to the high-definition
monitor. The system will automatically recognize the screen and display
the contents of the computer screen at the same time. The display mode
includes mirror display and extended display mode. Set in the "Display"
settings of Mac OS.

Mac OS Extended Mode

• Connect
  the HUB to the Type-C female connector on the computer, and then
  connect the HDMI/VGA video and audio cable to the HD monitor. The system
  will automatically recognize the screen. Open "System
  Preferences"-"Display"-"Layout": the option in the mirror mode in the
  lower left corner is not marked with "√".

• What appears is: the notebook displays screen "A", and all three monitors display the same screen "B".

Mac OS mirror mode

• Connect
  the HUB to the Type-C female connector on the computer, and then
  connect the HDMI/VGA video and audio cable to the HD monitor. The system
  will automatically recognize the screen. Open "System
  Preferences"-"Display"-"Layout": the bottom left corner is the mirror
  mode. Select "√".

• What appears is: the notebook displays screen "A", and all three monitors display the same screen "A".

notes:

When two and three monitors are connected, all resolution output is
1920*1080p 60HZ resolution, in the case of single HDMI connection, no
matter what mode, the output resolution is 3840*2160 30hz

Extensive compatibility (Send us your model number and we will help you determine compatibility)

MacBook Air (2018, 2019, 2020 M1)

MacBook Pro 13" (2016, 2017, 2018, 2019, 2020 M1)

MacBook Pro 15" (2016, 2017, 2018, 2019)

MacBook Pro 16" 2019 MacBook 12" (2015, 2016, 2017)

iMac & iMac Pro >> iMac(2019,2020); iMac Pro(2017,2018,2019,2020)

Mac Mini 2018, 2019, 2020 M1

iPad Pro & Air >> iPad Pro 11",12.9" (2018,2020); iPad Air 10.9" 2020

Microsoft Surface Go, Go 2, Pro 7, Pro X, Book 2, Book 3, Notebook 3, Studio 2

Dell XPS 12" 13" 15", Alienware 13,15,17, Precision 15,17, Latitude 5401

Samsung Chromebook Pro, Chromebook Plus, Notebook 9 13", Galaxy Book
12", Book 10.6, Tab Pro S 12", Tab s4, Tab S5e, Tab S6; Galaxy Book;
Galaxy Fold

HP Spectre 13, Envy 13", Envy 15", HP Envy X360 EliteBook folio G1

ASUS Zenbook 3, T305C, U4100, ROG

Lenovo Yoga 900, 910, 920, 720, Ideapad 720S 14", Think Pad X1, P70, P50, Lenovo Legion Pro, Lenovo Legion Duel

Google Chromebook Pixel book, Pixel book Go, Google Pixel Slate; Chromebook Spin 11 R751t-C7aw; Chromebook R751t

Huawei MateBook X Pro (2019, 2020) (Non-complete list)
