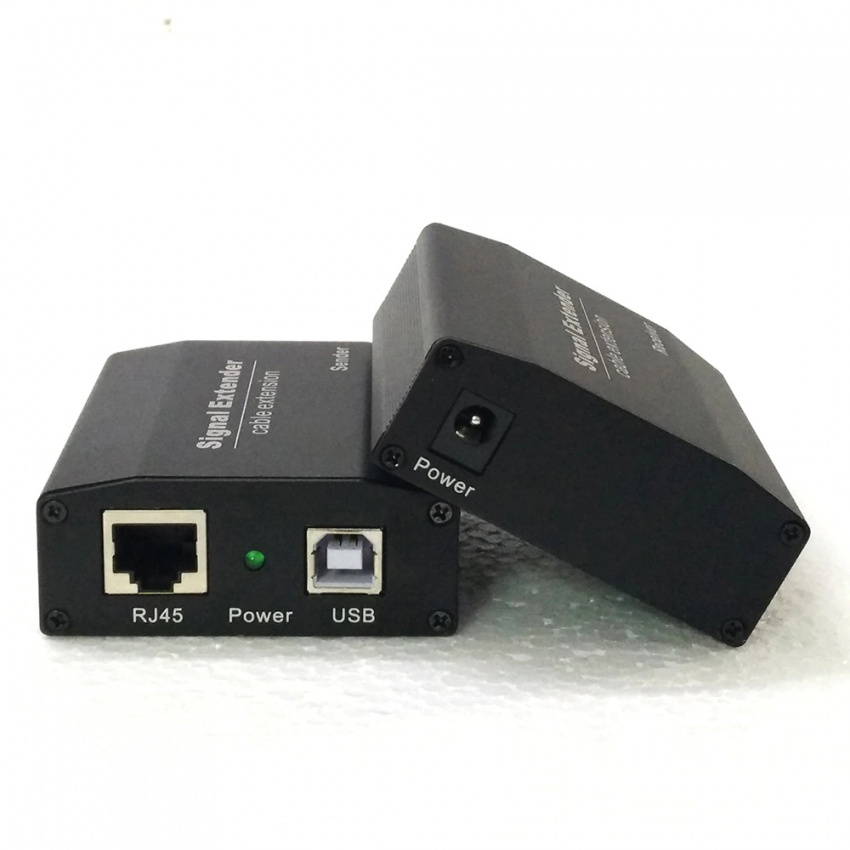

Charmvision EU151P USB extender includes a Sender and a Receiver. It can extend USB signal of the computer through a single Cat6 cable max up to 150 meters (low speed) and 60 meters (full speed) equipments, compatible with USB2.0 high speed protocol. it needs DC5V power supply additional on Receiver host.
Charmvision EU151P USB Extender widely used in the Computer-System, Monitor-System, Large-Screen-Advertising, Education, Banking, Securities-System etc..
APPLICATIONS
TECHNICAL SPECIFICATION
Input Signal | USB *1 |
Output Signal | USB *1 |
Extend Distance | full speeds ≤60m; low speeds ≤150m |
Interface Type | Input: USB B type Output: USB A type |
USB Protocol | USB1.1 full speed, compatible with USB2.0 high speed |
USB Transmission Rate | 2~12Mbps |
MTBF | >50000 hours |
System Support | Windows 98/SE/ME/2000/XP/7/8/10, Linux, Mac |
Transmission Interface | RJ45 T568b |
Cable Type | CAT5/CAT5E/CAT6 UTP/STP, recommend to use UTP cable |
Power Consumption | <6W |
Operating Temperature | -15~+60.C |
Storage Humidity | 0~90% (no condensation) |
Power Supply | DC5V/1A |
Material | Aluminum alloy |
Weight | 115g*2 |
Dimensions (LWH) | Sender: 75*60*22mm Receiver: 75*60*22mm |
OTHER SPECIFICATIONS
Model | Support Protocol | Output Interface | Transmission Rate | ||||
EU151U | USB1.1, compatible with USB2.0 | USB*1, without power | 2~12Mbps | ||||
EU151P | USB1.1, compatible with USB2.0 | USB*1, power supply | 2~12Mbps | ||||
EU204P | USB2.0, compatible with USB1.1 | USB*4, power supply | 12~480Mbps | ||||
EU254P | USB2.0, compatible with USB1.1 | USB*4, power supply | 12~480Mbps |

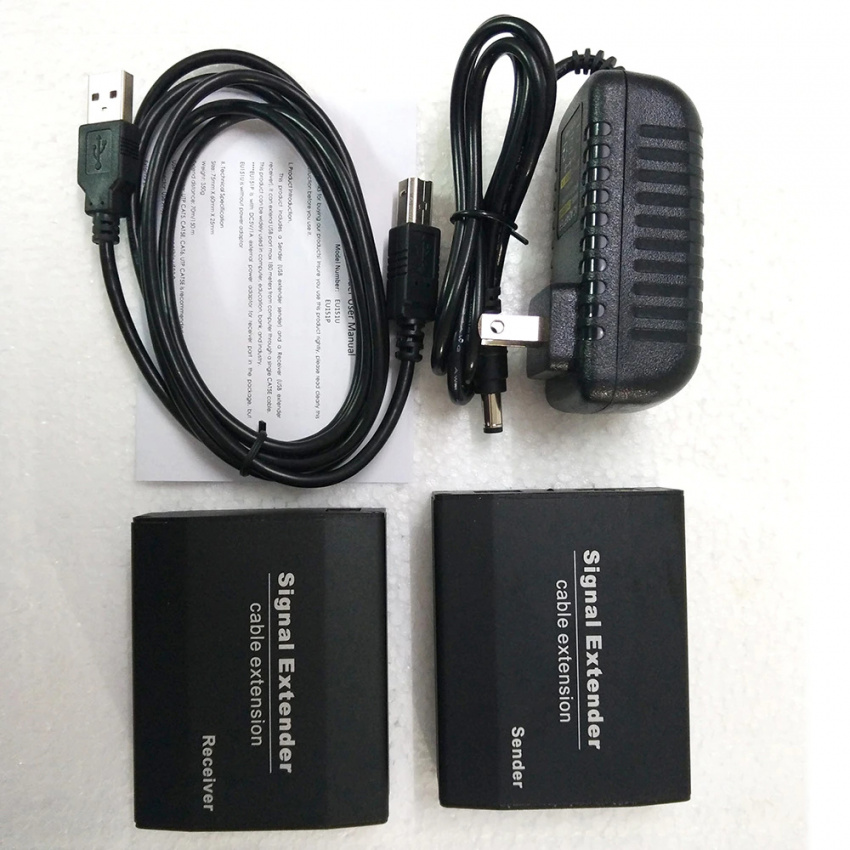

ACCESSORIES LIST
