Type-1 5.25" Optical Drive USB Type C (10Gbps) Front Panel Computer Case Expansion Board w/ USB 3.1 Motherboard Header 20Pin Key-A,7 Ports Support Type-C, USB 3.0, USB 2.0, HD Audio & Microphone

5.25 -inch Front Bay to 5-Port USB Panel Hub and 1 HD Audio Port/1 Microphone Port
Turns any available 5.25 -inch computer case front bay into a 5 Port USB hub, USB 3.1 Gen 2 Type-C, 2 ports USB 3.0 and 2 ports USB 2.0
Type-C port, compliant with USB 3.1 Gen 2 10Gpbs data rate
USB 3.0 Ports, compliant with the USB 3.0 standard which supports up to 5Gbps data transfer and up to 900mA of current output.
USB 2.0 Ports, compliant with the USB 2.0 standard which supports up to 480Mbps data transfer and up to 500mA of current output.
HD Audio & Microphone is Compatible with AC 97 or HD Audio standards with autosensing
Installation is quick and easy, and the unit is plug and play.
Simply fit the bay into the space with the screws provided,
Plug the bay into the USB 3.1 20Pin A-Key, USB 3.0 19/20 pin connector and USB 2.0 10pin connector on the motherboard, and you're all set.

Note

One USB 3.1 20pin Motherboard header (aka Type-E) is needed for USB-C Expansion
One 20 pin USB 3.0 and 10pin USB 2.0 header on motherboard are needed for USB 3.0 and USB 2.0 ports expansion
AC97/HD Audio 10pin header on motherboard is needed for audio and mic. port

Tyype-2 3.5" font panle,USB-C+2xUSB3.0+HD Audio

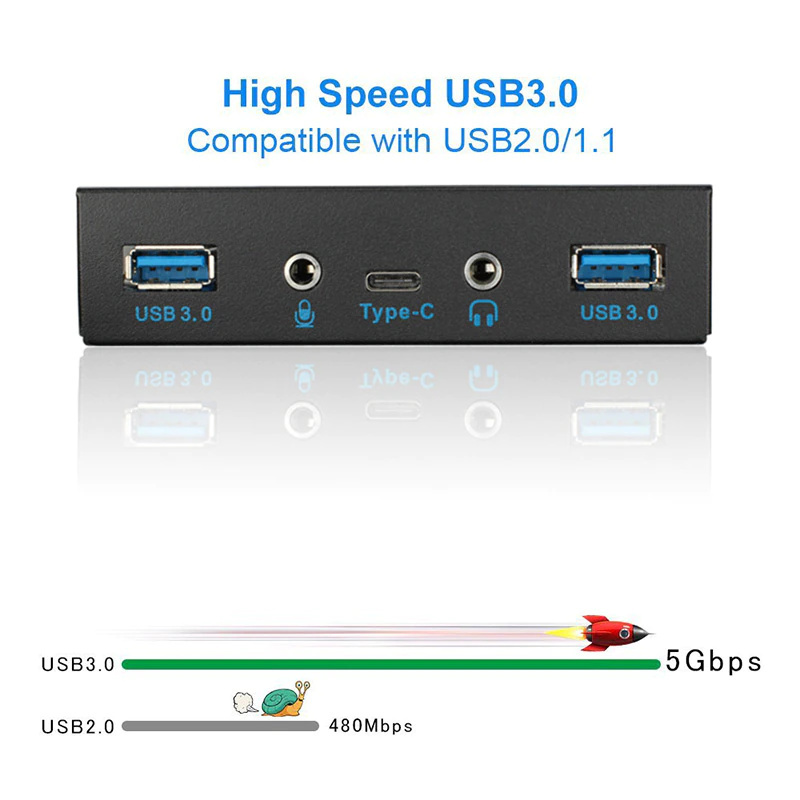

3.5-inch Front Bay to 3-Port USB Panel Hub and 1 HD Audio Port/1 Microphone Port
turns any available 3.5-inch computer case front bay into one newest USB 3.1 Type-C and 2 x USB 3.0 Ports.
This front panel hub extend three easily accessible USB ports to the front of your computer case through a 3.5-inch bay, or through a 5.25-inch bay using the optional front bay bracket adapter accessory.
Added USB Type-C port compliant with the USB 3.1 Gen 1 standard which supports up to 5Gbps of bandwidth
Added USB 3.0 ports are compliant with the USB 3.0 standard which supports up to 5Gbps of bandwidth and up to 900mA of power.
HD Audio & Microphone is Compatible with AC 97 or HD Audio standards with autosensing
Installation is quick and easy, and the unit is plug and play.
Simply fit the bay into the space with the screws provided, plug the bay into the USB 20pin connectors on the motherboard, and you're all set.

Features:
Ports: 1 x USB 3.1 Gen 1 5Gbps Port + 2 x USB 3.0 Type-A Female
Supports 3.5mm stereo HD audio outout
Supports 3.5mm microphone input
USB Data Transfer Rate: Up to 5Gb/s max.
Fits: 3.5" Open Bay Space
Cable Length: 80cm
Compatible with Windows XP/Vista/7/8/8.1
Plug and Play
Hot Swappable
Backwards compatible with USB 1.1,USB 2.0 and USB 3.0
