Please make sure your device is compatible with the extension, otherwise it cannot be used. The Type-C interface of the laptop must be Thunderbolt 3 or support the USB3.1 protocol
Different model has different interface and appearance, please choose suitable model before purchase:
(1) 9 in 1 Hub :
HDMI 4K + 3.5mm Audio + USB-C + SD/TF+USB3.0 + 2*USB2.0 +PD USB-C Mouth
(2) 6 in 1 (HDMI+Card Reader)Model:
HDMI 4K + SD/TF+2*USB3.0+PD USB-C Mouth
(3) 5 in 1 (Lan+HDMI)Model:
RJ45 100Mbps +HDMI 4K+2*USB3.0+PD USB-C Mouth
(4) 4 in 1 USB Model :
USB3.0 + 3*USB2.0
- When connecting to laptop, Do NOT support charging cellphone through USB-A or USB-C female port due to limited current.
- Please provide power supply when connecting to power-hungry devices; Only support connecting 1 HDD/SSD at a time.
- To prevent Wi-Fi interference, you could wrap the line body near type-c port with foil paper, or using the router of 5GHz frequency. Also, please unplug ethernet cable and PD charging cable from adapter when not using.
- For Xiaomi laptops, we suggest connecting to non-original PD power adapter such as Apple, Dell power adapter to ensure normal use.
(1) 9 in 1 Model :
- 9-in-1 USB C Hub: USB C hub comes with all the necessary functions you need in daily life and general work, including 1 x 4K@30Hz HDMI port, 1 x PD charging port, 1 x USB-C 3.0 port, 1 x USB 3.0 Ports,2 x USB 2.0 Ports, 1 x Audio, 1 x TF card slot, 1 x SD card slot. No software and drivers are required, plug and play.
- 4K HDMI to USB C Hub: Mirror or extend your screen with the HDMI port to HDTV, monitor or projector. The USB C to HDMI provides you with lifelike 4K 3840 x 2160@30Hz HDMI images, bringing you an immersive 3D resolution experience.
- Fast 100W PD Charging: Support PD charging up to 100W, power out (charging) is limited to 87W. The USB C hub multiport adapter provides a Type-C pass-through female port by which you could securely charge your laptop while connecting multiple peripherals for data transferring and worry-free power storage.
- 4 x USB Ports for Full Connection: USB hub offers 1 x USB-C 3.0 port ,1 x USB 3.0 ports and 2 x USB 2.0 portsfor fast transmission (super speed with data transfer up to 5Gbps), and for connecting the USB peripherals such as flash drive, hard drive, keyboard, mouse, printer and more.
- Travel Size SD/TF USB C Adapter: Aluminium alloy casting and 2.6 ounce pocket size. It takes only a few seconds to transfer photos or videos to your laptop, capacity up to 2TB. An Ideal Mac Book Pro USB-C hub/USB C laptop hub for your work and travel.
1.To use the HDMI-Compatiable output port, the host USB-C port from your device must support DisplayPort Alt Mode.
2.To power and charge a connected USB-C laptop, the host USB-C port from your device must support USB Power Delivery.
3.This hole is not an indicator, it is a vent.
Compatible device (partially listed):
MacBook 2015/2016/ 2017/2018/2019/2020
MacBook Pro 2016/2017/2018/2019/2020
MacBook Air 2018/2019/2020
iPad Air 4 2020
Dell: XPS 12 9250,XPS13 9350/9360/9370, XPS 15 9550/9560, Inspiron 7378/7389/7569, Precision 5510/5520
HP: Spectre x360 13, Chromebook 13 G1, EliteBook x360 G2
Lenovo Yoga 720 13" & Yoga 920, IdeaPad 720S, Mix 720, T470/480/570, Thinkpad-X1,X270
Huawei MateBook X Pro, Surface Book2, Google ChromeBook pixel 2016/2017
Windows 10 Mac OS X 10.6 or later, Linux 2.6.14 or later, iPad OS
Apple USB SuperDrive
Original Dell XPS 13 stock adapter
Original Samsung phone and tablet stock adapters
1. PD port is only for charging, not support data transfer.
2. Please make sure that the USB-C(Type C) interface of your device supports the function of charging, video and data transfer.
High Speed Transmission
The transmission speed is up to 5Gbps/s, 1GB movie can be transmitted in 5S.
The thunderbolt hub can be connected USB disk, hard disk, keyboard and many other USB devices at the same time by three USB 3.0 expansion ports, improving your work efficiency in all aspects
4K HDMI Display
HDMI output supports video resolution up to 4K@30Hz UHD or 1080P@60Hz to an external screen. Connect your usb-c smart phone ,iPad Pro or laptop to present your content in a bigger, better way

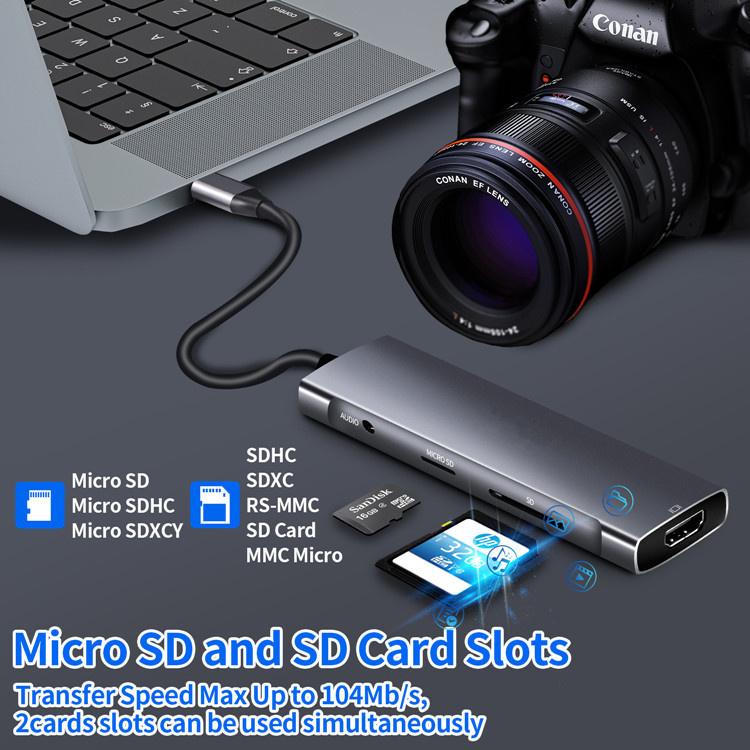

Dual USB 3.0 SD and microSD(TF) card reader
Only the pictures and specific parameters of 9 in 1 hub have been uploaded. For the parameters of other styles, please refer to the links of other products in this shop
