USB Type C Hub Adapter Laptop Docking Station,MST Dual Monitor Dual HDMI VGA RJ45 SD TF PD for MacBook Dell XPS Hp Lenovo ThinkPad Surface Laptops
There are 3 models optional, different model with different interface and appearance, please choose suitable model before purchase:
*********************************************************
8-IN-1 Docking Station
Color: Silver
Material: Aluminum alloy
Length of Cable: 290mm/11.42inch
Interfaces: USB Type C male port
Port-1: Ethernet Network Adapter RJ45 Port, 10/100Mbps, Not 1000Mbps
Port-2: SD Card Slot
Port-3: Micro SD Card Slot, TF Card Slot
Port-4: USB 3.0, Speed up to 5Gbps, Power Supply Up to 5V-900mA 4.5W
Port-5: USB 3.0, Speed up to 5Gbps, Power Supply Up to 5V-900mA 4.5W
Port-6: HDMI max support 4K 30Hz, Downwards Compatible with 1080P, 720P etc.
Port-7: USB Type C PD Charging Port
Port-8: USB Type C Female Port for Data Transmission, Speed up to 5Gbps, Power Supply Up to 5V-900mA 4.5W
*********************************************************
11-IN-1 Docking Station
Color: Silver
Material: Aluminum alloy
Size: 250mm*80mm*(16mm, 8mm)/9.84*3.15*(0.62, 0.31)inch
Length of Cable: 290mm/11.42inch
Interfaces: USB Type C male port
Port-1: USB 2.0, Type A Female Port
Port-2: SD Card Slot
Port-3: Micro SD Card Slot, TF Card Slot
Port-4: USB 3.0, Speed up to 5Gbps, Power Supply Up to 5V-900mA 4.5W
Port-5: USB Type C Female Port for Data Transmission, Speed up to 5Gbps, Power Supply Up to 5V-900mA 4.5W
Port-6: USB 3.0, Speed up to 5Gbps, Power Supply Up to 5V-900mA 4.5W
Port-7: Ethernet Network Adapter RJ45 Port, 10/100Mbps, Not 1000Mbps
Port-8: HDMI max support 4K 30Hz, Downwards Compatible with 1080P, 720P etc.
Port-9: DC 3.5mm Audio Jack Port
Port-10: VGA max support 1080P 60Hz, Downwards Compatible with 1080I, 720P etc.
Port-11: USB Type C PD Charging Port
*********************************************************
12-IN-1 Docking Station
Color: Silver(The monitor color has a certain color difference)
Material: Aluminum alloy
Size: 274mm*80mm*(16mm, 8mm)/10.79*3.15*(0.62, 0.31)inch
Length of Cable: 290mm/11.42inch
Interface: USB Type C male port
Port-1: USB 2.0, Type A Female Port
Port-2: SD Card Slot
Port-3: Micro SD Card Slot, TF Card Slot
Port-4: USB 3.0, Speed up to 5Gbps, Power Supply Up to 5V-900mA 4.5W
Port-5: USB Type C Female Port for Data Transmission, Speed up to 5Gbps, Power Supply Up to 5V-900mA 4.5W
Port-6: USB 3.0, Speed up to 5Gbps, Power Supply Up to 5V-900mA 4.5W
Port-7: Ethernet Network Adapter RJ45 Port, 10/100Mbps, NOT support 1000Mbps
Port-8: HDMI max support 4K 30Hz, Downwards Compatible with 1080P, 720P etc.
Port-9: HDMI max support 4K 30Hz, Downwards Compatible with 1080P, 720P etc.
Port-10: DC 3.5mm Audio Jack Port
Port-11: VGA max support 1080P 60Hz, Downwards Compatible with 1080I, 720P etc.
Port-12: USB Type C PD Charging Port
*********************************************************
Please note:
Please make sure your device is compatible with the extension, otherwise it cannot be used. The Type-C interface of the laptop must be Thunderbolt 3 or support the USB3.1 protocol
To avoid being unable to use, please check the extended non-compatibility list
IMPORTANT NOTE
1. Make sure that the host USB-C port on your device complies with the USB USB 3.1 specification,Or Thunderbolt 3 interface.
2. To use the HDMI output port, the host USB-C port from your device must support DisplayPort Alt Mode.
3. To use the Power Delivery function to power and charge a connected USB-C laptop, the host USB-C port from your device must support USB Power Delivery. The USB-C input charging port cannot be used for data transmission.
4. Please do not rely on the USB-C ports for charging your phones, tablets or other devices.
5. For a stable connection, do not use this hub with high-power devices. It supports one hard drive max.
6. Not support charging for HP laptops and tablets via the PD USB-C charging port.
7. Charging Power Delivery enabled Dell USB-C laptops via the PD USB-C charging port requires using your 55W or above original power adapter.
8. 3.5mm audio port for use with HDMI or VGA
12-IN-1 Docking Station
Please make sure your device is compatible with the extension, otherwise it cannot be used. The Type-C interface of the laptop must be Thunderbolt 3 or support the USB3.1 protocol
To avoid being unable to use, please check the extended non-compatibility list
IMPORTANT NOTE
1. Make sure that the host USB-C port on your device complies with the USB USB 3.1 specification,Or Thunderbolt 3 interface.
2. To use the HDMI output port, the host USB-C port from your device must support DisplayPort Alt Mode.
3. To use the Power Delivery function to power and charge a connected USB-C laptop, the host USB-C port from your device must support USB Power Delivery. The USB-C input charging port cannot be used for data transmission.
4. Please do not rely on the USB-C ports for charging your phones, tablets or other devices.
5. For a stable connection, do not use this hub with high-power devices. It supports one hard drive max.
6. Not support charging for HP laptops and tablets via the PD USB-C charging port.
7. Charging Power Delivery enabled Dell USB-C laptops via the PD USB-C charging port requires using your 55W or above original power adapter.
8. 3.5mm audio port for use with HDMI or VGA
12-IN-1 Docking Station
Function-1: Connect Keyboard, Mouse, USB Flash, Printer etc.

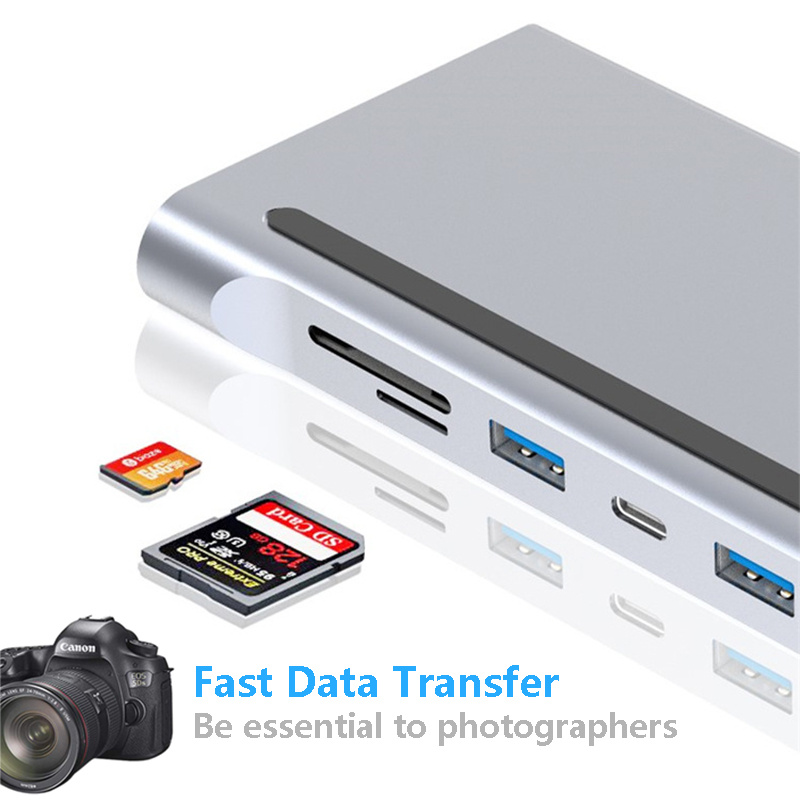

Function-2: Easy to Read Digital Camera Storage SD, Micro SD, TF Card
Function-3: Connect Lan via RJ45, Enjoy more reliable network than wireless
Function-4: Support USB C Power Delivery, Keep laptop the best performance
Function-5: Extend a Larger Screen via HDMI or VGA
Function-6: Connect Projector, Monitor, HD-TV, HDMI up to 4K 3840x2160 30Hz
Function-7: 2 HDMIs and VGA, Support Mirror Mode and Extended Mode
Function-8: Support MST, Extend mode support Extend 2 monitors to show different contents on Windows
*********************************************************
Package Contents: 1*USB C Docking Station
ONLY 1 Docking station in the package, other accessories are not included.
*********************************************************
Compatible:
* For MacBook 2021/2020/2019/2018/2017, MackBook Pro2021/2020/2019/2018/2017
* For Lenovo ThinkPad T490, T490s, T14 (14")Intel, T480, T480s, T580, T590, T15 (15")Intel
* For Lenovo ThinkPad P43s (14"), P14s (14"), P15s (15")
* For Lenovo ThinkPad X280, X390, X13(13")Intel, X13 Yoga(13"), X380 Yoga(13")
* For Lenovo ThinkPad X1 Yoga Gen 3 (14"), X1 YOGA Gen 4 (14"), X1 Yoga Gen 5 (14")
* For Lenovo ThinkPad X1 Carbon Gen 6 (14"), X1 Carbon Gen 7 (14"), X1 Carbon Gen 8 (14")
* For Dell XPS 13 9360, XPS 13 9370, XPS 13 9380, XPS 13 7390, XPS 13 9300
* For Dell XPS 13 9365 2-in-1, XPS 13 7390 2-in-1
* For Dell XPS 15 9575 2-in-1
* For Dell Latitude 7400 2-in-1 14"
* For Dell Latitude 7200 2-in-1 12", Latitude 7210 2-in-1 12"
* For HP SPECTRE x360 15.6'', HP SPECTRE x369 13''
* For Surface Book 2
* updating...
The other windows laptops MUST require:
- The USB-C port on your laptop is a Thunderbolt-3 port.
- The USB-C port of the laptop is also a AC(power) port, or you don't want to power the laptop via this docking station.
WARNING TIPS:
1. If you are not sure whether this docking station is compatible with your laptop,
please tell me the model of your laptop, I am pleasure to check the compatible.
2. You MUST make sure the host USB-C port is on the left side of your laptop.
Because the length of cable maybe not enough to connect USB-C port in the right side when placing this Docking station under the laptop.
Or you don't want to place this docking station under the laptop.
3. ONLY 12-IN-1 For Windows supports Extend 2 monitors to show the different screens.
4. It supports 4K or 2K when only one HDMI monitor is connecting. When connecting more one monitor, their resolution will all downward to 1080p.
5. When you use the docking station to extend monitors, please connect to monitors first, and then connect to your laptop.
Not support HDMI and VGA Hot plug.
