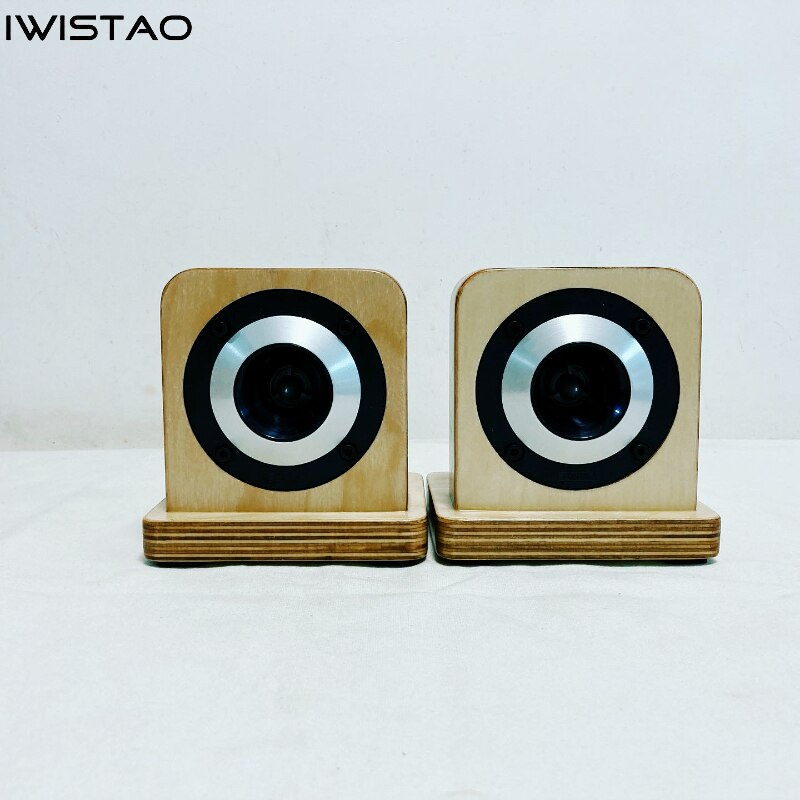

IWISTAO Super Tweeter Base Solid Wood Brand New Original Fostex FT17H UHF Compensation 5 kHz ~ 35 kHz for Full Range Unit
Model No: WHFSC-SHTFT17H
The model FT17H is an easy to use high performance horn tweeter. With its precisely engineered horn part and specially made diaphragm, it offers sharp sound and high efficiency. Its magnetic circuit is constructed with low magnetic leakage, and it can be used as a plus-one tweeter for main speaker system just with plain network. It is suited to use in combination with Fostex FE-series or FF-series full range speaker drivers. The Fostex FT17H features a frequency response that extends out to 50 kHz and has a high sensitivity, rated at 98.5 dB / 1W / 1m. The nominal impedance of the FT17H horn tweeter is 8 ohms making the horn tweeters easy to drive even with small amplifiers. The FT17H horn tweeter uses a shielded magnet. The overall weight of the FT17H tweeter is 340 g (0.75 lbs). Included with the horn tweeter are mounting screws and a datasheet. A gasket comes affixed to the tweeter housing.
The build quality of the Fostex FT17H horn tweeter is good for the price range. The horn super tweeter offers a crisp high frequency response that extends out well past the audible range. Provided that a crossover point in-excess of about 10 kHz is used, the performance is very good. The FT17H is ideal for mounting in an enclosure - front and rear firing. The FT17H offers high cost performance and is well suited for added that last little bit of sparkle and air to high sensitivity speaker systems. From the Fostex FT17H datasheet a crossover frequency of 5 kHz or more is recommended. We have had good results with this tweeter using a first-order crossover in the 10 to 15 kHz range. You can use an L-Pad attenuator to match the tweeter level to your speakers. The low cost FT17H is ideal for use as a rear mounted super tweeter.
With a pair of 2.2UF non-polar audio capacitors, use the full-range speaker in parallel, put the speaker on the top as a Ultra high frequency compensation, make your full-frequency system even better!
Original Wood Color
Red Brawn
Details
Wood Base Only option
1. Wood Base Only(OWC)-- wood base only original wood color without FT17H unit: 1 pair.
2. Wood Base Only(RD)-- wood base only red wood color without FT17H unit: 1 pair.
Specifications
Super tweeter unit: Fostex FT17H
Input: 30 W (Music)
Type: 16 mm horn tweeter
Impedance:8 Ω
Frequency Response:5 kHz ~ 35 kHz
SPL: 96 dB/W (1 m)
Cut-off Freqeuncy:2.6 kHz
Recommended Cross-over Frequency: 5.0 kHz or higher
Magnet Weight: 113. 5 g
total Weight:340 g
Qty: 1 pair
Tweeter base
Material: solid wood
Size(W*H*D): 100mm*100mm*115mm
Quantities: 1 pair
Weight: 2kg/pair
2.2UF non-polar audio capacitors x 2pcs
----------------------------------------------------------------------------------------------------------------
The photos below only for you information
