Wavlink Thunderbolt 3 adapter Dual DisplayPort 8K@30HZ Adapter USB C Hub 4K&5K@60Hz Type c Splitter video display Adapter
-----Titan Ridge Second Generation Thunderbolt™ 3 to dual DisplayPort adapter, it’s offering single-cable connectivity to large high-resolution monitors or multiple monitors. -----To achieve the previously impossible feat of using a single port video maximum output resolution at 8K 30Hz for professional users, you can have two times the screen space compared to 4K monitor. Also, dual Full HD at 144Hz output favorite for gaming users, or dual 4K resolution at 60Hz output for business users. Won't drain system resources, you can work more efficiently from your laptop, so you can accomplish more in the same amount of time. Product Feature: -----Thunderbolt 3 second generation JHL7440 chipset solution ----- Support DisplayPort DP1.4 -----Support DisplayPort RBR (Reduced Bit Rate) 、HBR (High Bit Rate) 、HBR2 、HBR3, transmission rate maximum up to 32.4 Gbit/s -----Support High Definition Copy Protocol (HDCP2.2) -----Support Adaptive Sync (many famous graphic cards build in already) ----- Support High Dynamic Range HBR(2.7Gbps), HBR2(5.4Gpbs), HBR3(8.1Gbps) -----TBT3 host computer under HBR3, adapter support single display resolution maximum up to 8K (7680 x 4320) @30Hz -----TBT3 host computer under HBR2, adapter support dual display resolution maximum up to 4K (4096 x 2160) @60Hz or Full HD@144Hz (gamer favorites) -----USB3.1 Type-C computer with VESA Alternate Mode under HBR3, adapter support single display resolution maximum up to 5K (5120 x 3200)@30Hz (not recommended for point promotion, cause of many user’s have confusion of Type-C features)
What is Thunderbolt 3 ?
Thunderbolt 3 port is REQUIRED for operation. Adapter will not function with regular USB-C port.Please Check for the Thunderbolt logo on your Mac or Windows computer. It must support Thunderbolt 3 to work with this adapter.Thunderbolt 3 speed can reach 40Gbps .
Dual 4K@60Hz, Each up to 4096 x 2160p.
Taking advantage of 40Gbps of throughput, the Thunderbolt 3 enables you to output dual 4K resolution at 60Hz to independent displays. You can output independent content to each display at resolutions of up to 4096 x 2160p (60Hz),which is perfect for editing 4K video or performing other Ultra HD tasks such as creating CAD drawings or reviewing medical imagery.

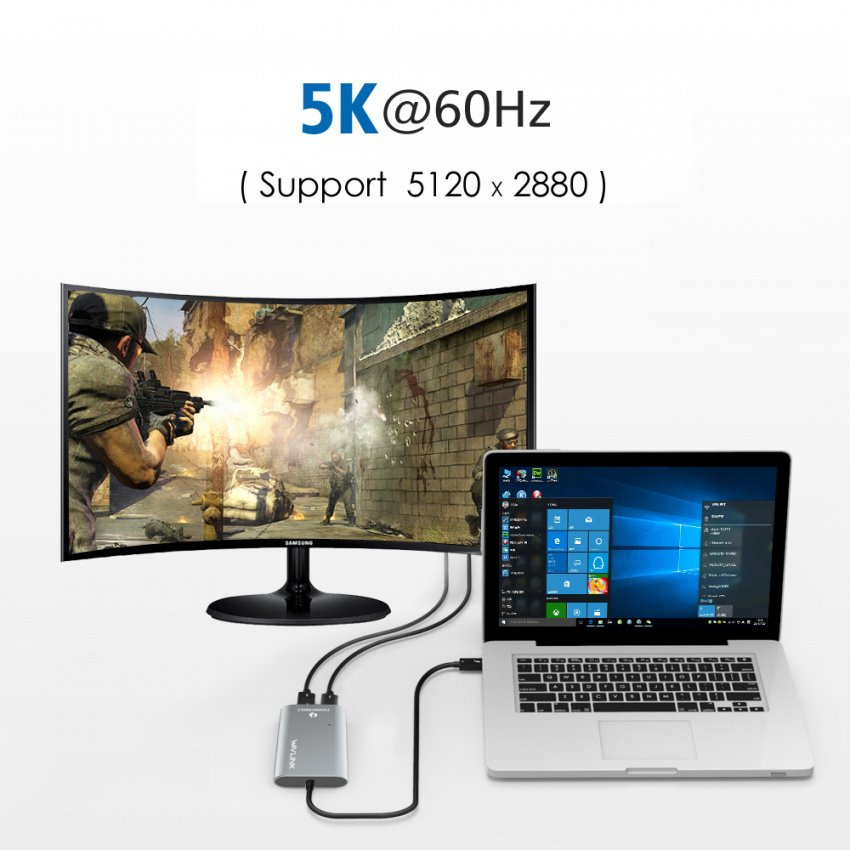

5K @ 60Hz Display
The Thunderbolt 3 Adapter can be used to connect two DisplayPort channels to a single 5K display, up to 5120 x 2880 resolution. ( Note: Only if both DisplayPort outputs are connected to 5K-capable display).
8K @ 30Hz Display
The Thunderbolt 3 Adapter can support up to 7680x4320 resolution . (Note: ( Note: Only if both DisplayPort outputs are connected to 8K-capable display).
----The Adapter will not function if attached to a non-Thunderbolt 3 capable USB-C port. ----Not all USB-C connectors support Thunderbolt 3. please check on your computer system specification to confirm it. ----In order to reach the 5K display, both DP outputs are connected to a 5K-capable display. ----If you need to expand 2 screens, your computer itself needs at least have two Thunderbolt 3 interfaces.then it can expand 2 screens at the same time. For example, Lenovo Yogo 720, only one Thunderbolt 3 interface, it can expand one screen in same time . but MacBook have more than 2 Thunderbolt 3 interfaces ,so it can expand 2 screens in same time.
